Piston Type Mascara Filling And Capping Machine AC220V With Lifting System

Piston Type Mascara Filling And Capping Machine AC220V With Lifting System

  • Piston Type Mascara Filling And Capping Machine AC220V With Lifting System
Piston Type Mascara Filling And Capping Machine AC220V With Lifting System
Product Details:
Place of Origin: China
Brand Name: Gieni
Model Number: JRM
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: Film+Polywood Case
Delivery Time: 90 days
Payment Terms: L/C,T/T
Supply Ability: 1set per three months
Contact Now
Detailed Product Description
Machine Dimension: 1200 X 800 X 2080MM Application: Mascara,Lipgloss
Brand: GIENI Filling Capacity: Max 30pcs/min
Voltage: AC220V Cleaning Time: 30min
High Light:

mascara filling and capping machine

,

linear filling machine

Piston Type Mascara Filling and Capping Machine with Lifting System









Application for Mascara Filling and Capping Machine



JRM is a kind of automatic filling machine for mascara and lipgloss. The process





section is including auto filling, wipers inserting, brush inserting and capping device.









Process:



Manually feeding container-Auto filling with two nozzles-Auto wipers inserting-



Manual brush cap feeding –Auto capping-Auto push finished product to conveyor-



Auto transfer to weigh checker-Auto weight checking.



Feature for Mascara Filling and Capping Machine



♦ With Auto wipers input, wipers checking, and capping function.Also it has option



  on program to set functions.



♦ Material tank is 15L, with heating, mixing, and pressuring functions.



♦ This machine adopts piston filling system. Filling parameter is able to set on touch



   screen.



♦ Wipers are fed through vibration table.



♦ With weight checking device to remove over weight products and not enough



   product.

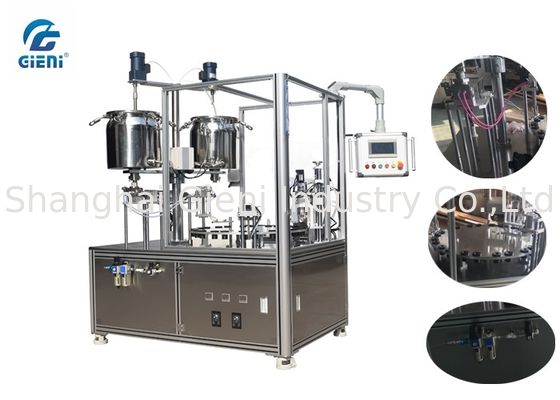

Piston Type Mascara Filling and Capping Machine with Lifting SystemPiston Type Mascara Filling And Capping Machine AC220V With Lifting System 1



Technical Parameter for Mascara Filling and Capping Machine





 Model



 JRM





 Outer Dimension



 120*80*208cm





 Voltage



 AC220V,1P,50/60HZ





 Air Pressure



 5-6kgs/cm2





 Cleaning time



 30mins





 Output



 24-30pcs/min





 Min.batch capacity



 5kgs





Packing and Shipping







♦ Will make sure the machine's package with stretch film wrapping first, and firmly



   sea worthy wooden case;



We can arrange shipping by air or by sea according to require;



We accept to ship by LCL or FCL co-loading.





Our Service



Supply the following after-sale service:





Free training your technican in our workshop;



1 year wear parts are provided with machine;



Able to come on site for commissioning, visa cost, double journey airfare, food



   and accommodation



Local transporation on site for coming engineer will be charge by buyer;



Salary in charge for coming engineer is USD150/day;



Providing Guidanc via email and telephone for whole life of the machine.
