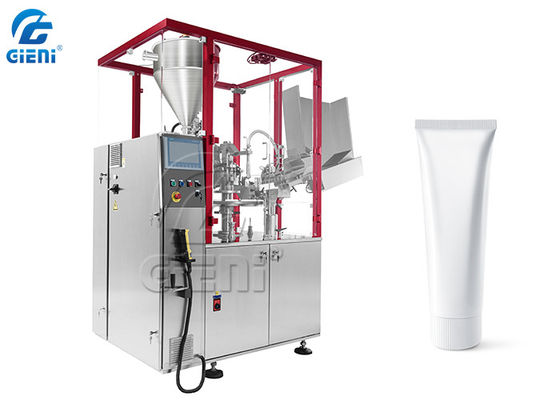

PID 19mm Tube 200ml 60ppm Cosmetic Filling Machine

PID 19mm Tube 200ml 60ppm Cosmetic Filling Machine

PID 19mm Tube 200ml 60ppm Cosmetic Filling Machine
PID 19mm Tube 200ml 60ppm Cosmetic Filling Machine

Product Details:

Place of Origin: Shanghai,China
Brand Name: GIENI
Certification: according to customers
Model Number: GFS

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood case
Contact Now
Detailed Product Description
It Is Suitable For Tubes With Dia. Of: 19mm; 35mm; 50mm Filling Volume Can Be: 5ml; 50ml; 200ml
Production Speed Of This Machine: 60ppm Air Source Needed: Compressed Air 6bar
Air Consumption: 5cmph (metal Tube); 56cmph (heating Type) Water Consumption: 200L/H (heating Type)
Power Consumption: 1.25kw (metal Tube); 5.3kw (heating Type) Machine Size: 1890*1083*2172mm
High Light:

60ppm Cosmetic Filling Machine

,

19mm Tube Cosmetic Filling Machine

,

PID Cosmetic Filling Machine



Technical Parameters:



Production speed: the actual production speed depends on the size of pipe diameter and the viscosity of the filling materials.



Tube dia. /mm 19 35 50
Filling volume / ml. 5 50 200
Speed: pc/min. 60 55/60 55
80 75/80 70



Energy Source





Energy air consumption (m3/H) Air pressure (bar) Water (L/H) Electricity (Kw)
Metal tube type 5 6 / 1.5
Metal tube type 56 6 200 5.3




Application:


1,Plastic tube & Composite tube;



2,Metal tubes;



3,Tube size: diameter from 10 mm to 50 mm (up to 60 mm, optional),tube length from 50 mm to 253 mm (including cover),suitable for various shapes of pipe covers.



Features:

This beautiful machine has great features as below:


1. The production speed is fast, GFS-60 can reach 60ppm, GFS-80 can reach 80ppm (depending on the material viscosity).



2. It can realize automatic filling, fast production transfer and automatic tail sealing.



3. High precision servo color mark positioning ensures the accuracy of sealing position.



4. Mechanical cam with piston pump filling, to ensure high precision filling volume, especially suitable for filling high viscosity materials.



5. The sealing temperature is controlled by PID, the temperature is stable and the welding quality is high.



6. Mechanical cam makes this equipment stable, long service life, and low defect rate.



7. Equipped with various protection systems, such as overload protection system, door opening and shutdown system, to ensure the safety and stability of use.



8. Sanitary grade 316L stainless steel is selected for parts contacting with materials.



9. Beautiful appearance, compact structure and small occupied area.



10. The key parts are international first class brands, such as Siemens PLC, Schneider electric components, Yaskawa frequency converter, etc.



11. The operation interface is simple and the fault alarm system is clear.



12. Three levels of operation permission can be set.



13. Double safety line can be used for tail sealing (optional).



14. R angle sealing can be selected (optional).



15. Special shaped sealing can be used (optional).



16. Can choose the defective products automatic elimination system, such as color mark positioning is not accurate, leakage filling, welding temperature is not up to standard and so on (optional).



17. Large capacity tube hopper can be selected (optional).



PID 19mm Tube 200ml 60ppm Cosmetic Filling Machine 0PID 19mm Tube 200ml 60ppm Cosmetic Filling Machine 1PID 19mm Tube 200ml 60ppm Cosmetic Filling Machine 2

PID 19mm Tube 200ml 60ppm Cosmetic Filling Machine 3PID 19mm Tube 200ml 60ppm Cosmetic Filling Machine 4
