Product Details:

Place of Origin: China
Brand Name: GIENI
Certification: CE
Model Number: JLG-10

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Export Ply-wooden case for JLG-10 10 nozzles lipstick filling machine for silicone lipstick
Delivery Time: 45
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1
Contact Now
Detailed Product Description
Machine Type: Filling Machine Application: Comestic
Function: Filling Lipstick Lip Balm With Metal Mold Material: SUS 304/316L
Automatic Grade: Semi-Automatic Voltage: 8kw
Filling Precision: ±0.1g
High Light:

10 Nozzles Lipstick Filling Machine

,

Metal Mold Lipstick Filling Machine

,

8kw Lipstick Filling Machine

Product Description

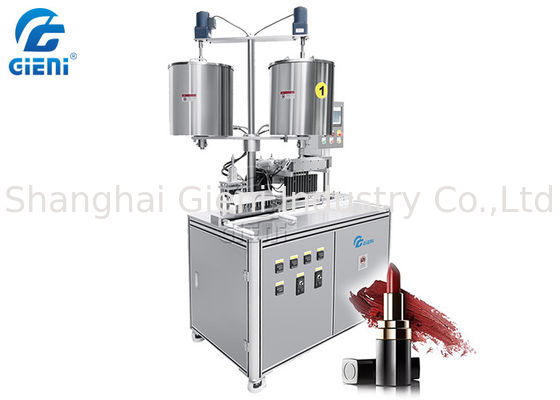

JLG-10 nozzles lipstick filling machine silicone lipstick



Technical Parameters
Lipstick Filling Machine Technical Parameters
Model
JLG-10
Outer dimension
1300 x 1000 x 2180 mm (L x W x H)
Voltage
AC380V(220V), 3P, 50/60HZ
Power
8KW
Filling nozzle
12 nozzles
Lipstick mold
Silicone rubber mold
Lipstick shape
Water Drop, Nail Drop, Moon Drop (According to product)

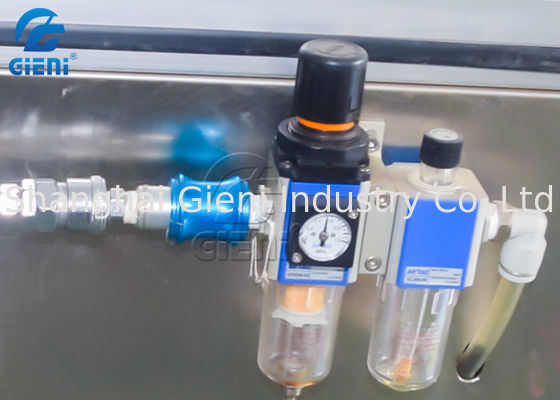

Air supply
0.6-0.8MPa, ≥300L/min
Output
2160-3600 pcs/hour
Operator
1~2 persons



Main Features

1) 20L double tank,with SUS304 material,and the contact parts is SUS316L material.

Three layers tank with heating and stirring;
2) Piston filling system is driven by servo motor with numerical control;Rotary valve is dirven by air cylinder;
3) Timing preheat system with signal light is provided for mold before filling;

4) Stirring device is driven by motor;

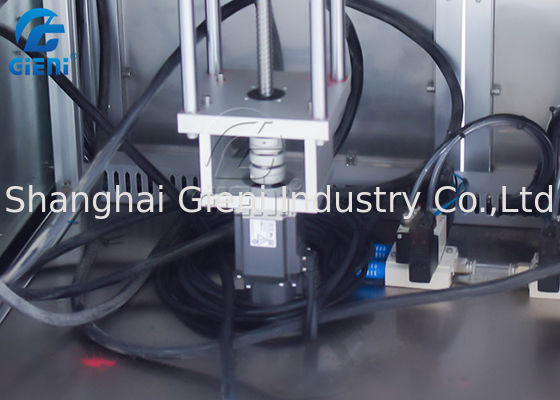

5) Mold lifting is drive by servo motor.

6) Simple and precise operation by using colorful touch screen interface with numercial control in all aspects;

7) Irregular bottles can be basically filled.





Product Application

Model JLG-10 nozzles lipstick filling machine silicone lipstick is made of stainless steel, it is durable and widely use for many kinds of lipstick.
It fill 10pcs per time, and available to switch into 12or 6 nozzles.
The special design of this machine is it has preheating system for metal mold.
8kw Metal Mold 10 Nozzles Lipstick Filling Machine 0
8kw Metal Mold 10 Nozzles Lipstick Filling Machine 1
Detailed Images















Machine Parts



Name: Pre-heat System

Feature:
10 cavities hot air blowing hose, to pre-heat the silicone rubber for high quality filling.

8kw Metal Mold 10 Nozzles Lipstick Filling Machine 2
8kw Metal Mold 10 Nozzles Lipstick Filling Machine 3











Machine Parts

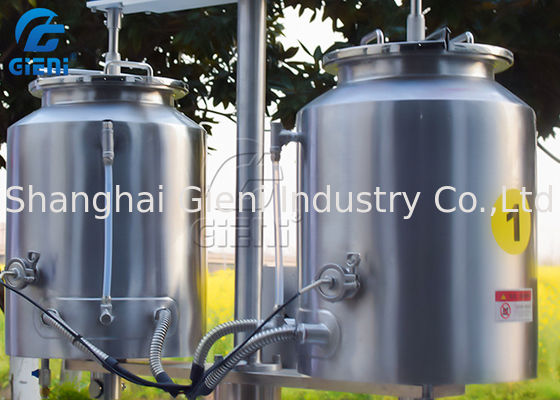

Material:SUS304

Feture: Two tanks with heating/mixing, SUS304 material, inner layer is SUS316L

Machine Parts

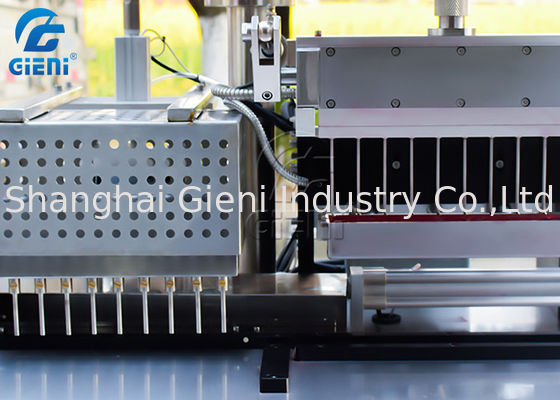

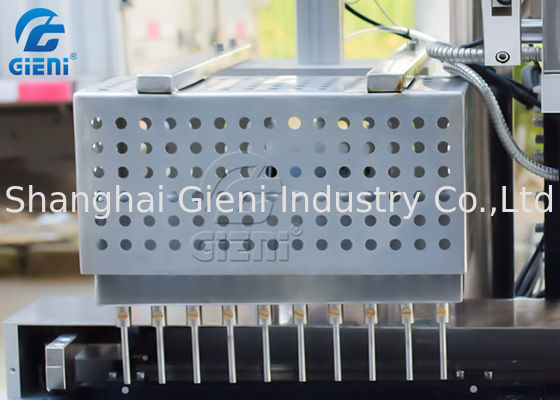

Filling Part

Nozzle QTY: 10pcs

Feture:

Servo driven filling system give high

precision ±0.1G.

Material collecting tray for auto filling after

30s non-running.

Nozzle with heating.

Valve with heating and mixing function.



8kw Metal Mold 10 Nozzles Lipstick Filling Machine 4
