Model: | JLG-5 | Voltage: | 380V,3P/220V 3P |
---|---|---|---|
Currency: | 17A | Output: | 4-6times/min 240-360pcs/hour |
Air Pressure: | 0.5-0.8 MPa | Power: | 6.5 KW |
Dimension: | 7500x1200x2250mm | Weight: | About 600kg |
Filling Precision: | ±0.1g | Filling Volume: | 5-28g |
High Light: | 360pcs/H Piston Filling Machine,0.8MPa Piston Filling Machine,6.5KW Cosmetic Filling Machine |

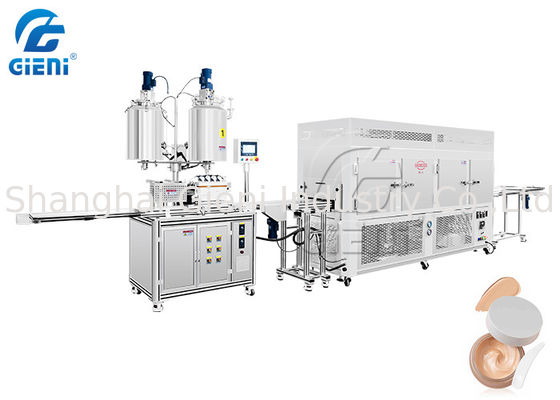

5 Nozzles Linear 0.8MPa 360pcs/H Piston Filling Machine
Application
Widely applicable, can be applied to most oily fluid filling, especially suitable for liquids and pastes such as lipstick, lipstick, liquid foundation and oils, as well as cold filling and hot filling of ordinary grease and liquids
Features

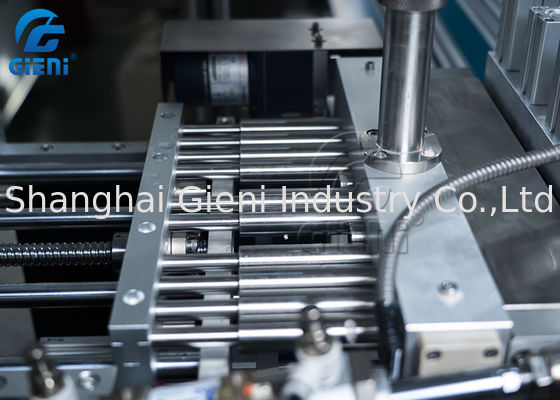

1. The filling precision is accurate. This machine uses a servo motor to drive the piston for filling. Equipment accuracy error is less than 2%
2. This machine is equipped with our specially designed thermal insulation system, without oil circulation system, and can realize the function of uniform constant temperature filling of all parts. At the same time, the machine adopts the filling nozzle plugging technology, which can realize the function of large-dose filling of hot-filled products.
3. This machine can replace material cylinders of different volumes, and adopts a quick-release design, which is clear and convenient.
4. Industrial hot air gun imported from Switzerland, reliable quality and long life; (customized)
Parameters
Model | JLG-5 | Linear 5 Nozzles Piston Filling Machine | |
Voltage | 380V,3P/220V 3P | Currency | 17A |
Output | 4-6times/min | Output | 240-360pcs/hout |
Power | 6.5 KW | Air pressure | 0.5-0.8 MPa |
Weight | About 600kg | Filling Precision | ±0.1g |
Filling Volume | 5-28g | Dimension | 7500x1200x2250mm |
Exclude energy consumption of cooling tunnel |
