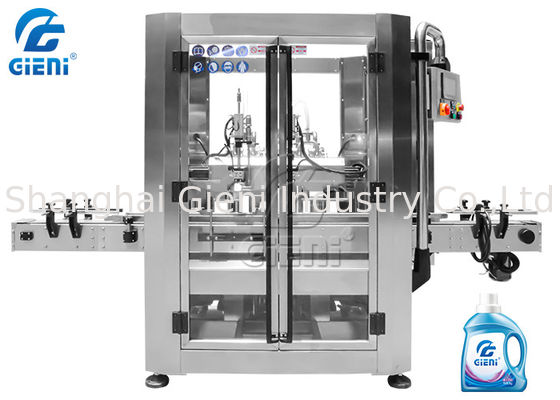

Linear Liquid 2 Nozzles Movable Cosmetic Filling Machine

Linear Liquid 2 Nozzles Movable Cosmetic Filling Machine

Linear Liquid 2 Nozzles Movable Cosmetic Filling Machine
Linear Liquid 2 Nozzles Movable Cosmetic Filling Machine
Linear Liquid 2 Nozzles Movable Cosmetic Filling Machine
Product Details:
Place of Origin: China
Brand Name: GIENI
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 45
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1
Contact Now
Detailed Product Description
Filling Head: Two Heads Filling Average: 100-1000ml
Speed: 2400-3600 Bottles/hour(ACC.Container Volume) Precision: ±1%
Powder/Voltage: 3.4KW/380V Pressure: 0.6-0.8mpa
Air Consumption: 6~7m³/min Dimension: 3000*1500*2100mm
Net Weight: 650kg
High Light:

1000ml Cosmetic Filling Machine

,

3.4KW Cosmetic Filling Machine

,

3600PCS/H Cosmetic Filling Machine

Linear Liquid Filling Machine(2nozzles Movable)
Filling head Two heads Precision ±1% Air consumption 6~7m³/min
Filling average 100-1000ml Powder/Voltage 3.4KW/380V Dimension 3000*1500*2100mm
Speed 2400-3600 bottles/hour(ACC.Container volume) Pressure 0.6-0.8mpa Net weight 650kg

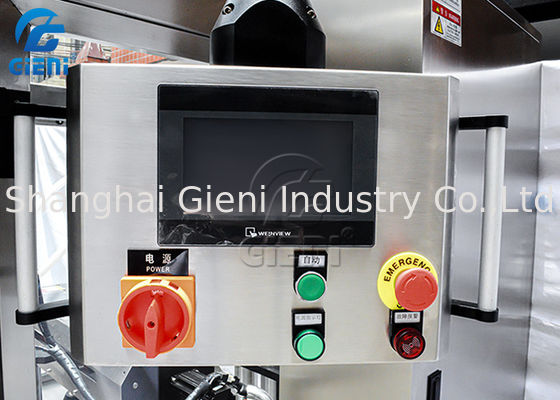

1.Convenient human machine interface



2.Adopts Dual heads up-down movement filling ,avoid bubble effectively ;


3.Precision ±1%;


4.Metering cylinder solved by inner grind,operate with special design of valve,precision measuring ,no leakage;


5.Sensor monitoring ,no container no filling ,Automatic stop function for bottle accumulation;


6.Widely used by both small and big container,simply adjust ,fact transfer time ;


7.Material contact parts all adopts flexible structure,easy for cleaning;



8.The whole machine adopts SS 304,aluminum magnesium alloy parts solved by oxidize,owns Strong abrasion resistance, good insulation, strong corrosion resistance and ect.



9. sets of bottle date can be stored ,only choose the right date for changing the container,the machine can adjust automatically ;one bottom adjustable ,smart and effectively;





The machine adopts trunk piston ration filling principle,container feeding ,positioning ,filling and discharge are controlled by PLC,full fill the GMP standard.Suit for liquid cream filling in chemical ,food stuff,daily chemical ,pesticide .On filling station ,container going forward constantly ,tracking filling part should full fill precision tracking with container,piston putting into container head ,tracking filling ,lift clipping ,back clipping those five steps,every functional action can be divided into horizontal tracking movement and vertical lift -down movement ,five functional steps combine into one exercise cycle.

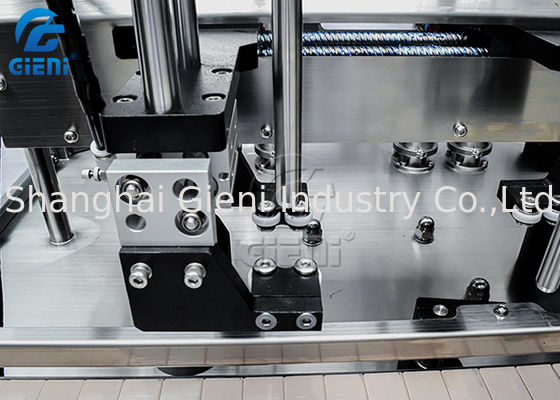

Linear Liquid 2 Nozzles Movable Cosmetic Filling Machine 0



Linear Liquid 2 Nozzles Movable Cosmetic Filling Machine 1



Linear Liquid 2 Nozzles Movable Cosmetic Filling Machine 2







Linear Liquid 2 Nozzles Movable Cosmetic Filling Machine 3Linear Liquid 2 Nozzles Movable Cosmetic Filling Machine 4Linear Liquid 2 Nozzles Movable Cosmetic Filling Machine 5
