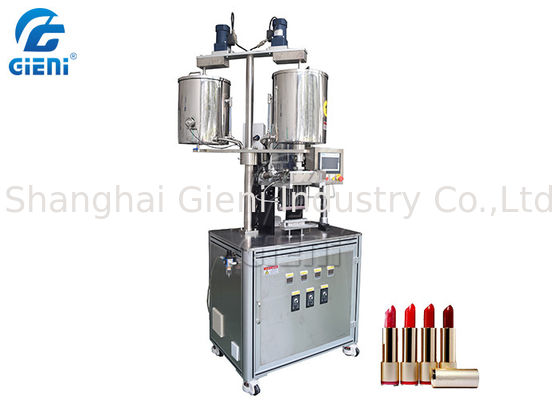

SUS304 Semi Automatic 6 Nozzles Lipstick Filling Machine Double Tank

SUS304 Semi Automatic 6 Nozzles Lipstick Filling Machine Double Tank

SUS304 Semi Automatic 6 Nozzles Lipstick Filling Machine Double Tank
SUS304 Semi Automatic 6 Nozzles Lipstick Filling Machine Double Tank
SUS304 Semi Automatic 6 Nozzles Lipstick Filling Machine Double Tank
Product Details:
Place of Origin: China
Brand Name: GIENI
Certification: CE
Model Number: JLG-6
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Export Ply-wooden case for JLG-10 10 nozzles lipstick filling machine for silicone lipstick
Delivery Time: 45
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1
Contact Now
Detailed Product Description
Machine Type: Lipstick Filling Machine Application: Lipstick Production
Material: SUS 304 Automatic Grade: Semi Automatic
Filling Precision: ±0.1% Type: Filling Machine
Condition: New Warranty: 1 Year
High Light:

6 Nozzles Lipstick Filling Machine

,

SUS304 Lipstick Filling Machine

,

double tank balm filling machine

Product Description



Semi Automatic 6 Nozzles Lipstick Filling Machine Lipstick Making Machines



Technical Parameters
Lipstick Filling Machine Technical Parameters
Model
JLG-6
Outer dimension
1300 x 1000 x 2180 mm (L x W x H)
Voltage
AC380V(220V), 3P, 50/60HZ
Power
8KW
Filling nozzle
6 nozzles
Lipstick mold
Silicone rubber mold
Lipstick shape
Water Drop, Nail Drop, Moon Drop (According to product)
Air supply
0.6-0.8MPa, ≥300L/min
Output
2160-3600 pcs/hour
Operator
1~2 persons



Main Features

1) 20L double tank, SUS304 material, SUS316L material for contact parts. Three-layer heating and stirring tank; 2) The piston filling system is driven by a servo motor numerically controlled; the rotary valve is driven by an air cylinder;

3) The mold is equipped with a timing preheating system with signal light before filling;

4) The stirring device is driven by a motor;

5) The mold lifting is driven by a servo motor.

6) Color touch screen interface, digital control in all aspects, simple and precise operation;

7) Irregular bottles can basically be filled.





Product Application

Model JLG-6 nozzles lipstick filling machine silicone lipstick is made of stainless steel, it is durable and widely use for many kinds of lipstick.
It fill 10pcs per time, and available to switch into 12or 10 nozzles.
The special design of this machine is it has preheating system for metal mold.
