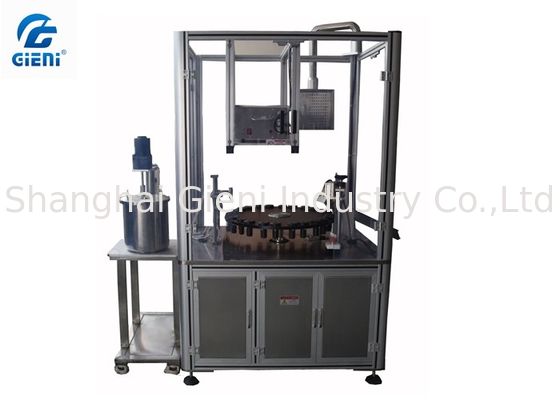

Semi - Auto Rotary Type Color Makeup Glitter Eyeliner Brush Filler Machine





Semi-Auto Rotary Type Glitter Eyeliner Filling Machine,Eyeliner Brush Filler









Application for Eyeliner Filling Machine

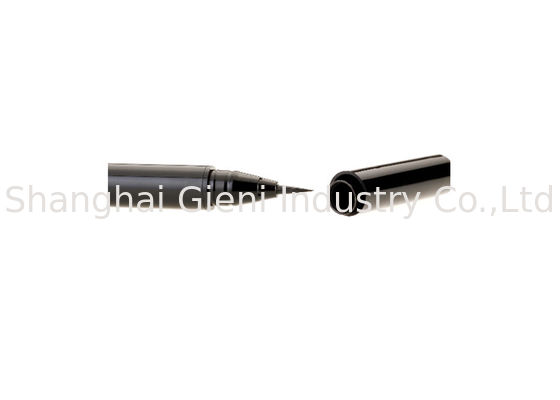

            Eyeliner filling machine is usually used for liquid eyeliner pencil, it has empty



container detecting system, automatic steel ball feeding, automatic filling, automatic



wiper feeding, automatic capping, automatic product pushing out systems.







Feature for Eyeliner Filling Machine



1.Semi - automatic eyeliner filling machine is designed independently by our



company according to the current fashionable eyeliner materials.



2.Process: Manual feeding container→Detecting container→Peristaltic pump



filling→Manual feeding cap→Auto capping→Auto container discharged



3.Machine structure:Main machine rack,Rotary plate system,Filling system,



Peristaltic pump material feeding system,Capping system,Container discharging



system,Controlling system.



4.The main engine is powered by JSCC motor, the filling system use servo



peristaltic pump, the capping and container discharging are controlled by cylinder



mechanical, and the detection sensor is OMRON optical fiber sensor.



5.Optional configuration: Auto container collating, Auto container feeding, Auto



swab refill feeding, Auto cap feeding











Technical Parameters for Eyeliner Filling Machine



Model	JPF
Outer dimension	100x95xx155cm
Voltage	AC220V,1P,50/60HZ
Air pressure	4-7kgs/cm2
Capacity	20-26pcs/min





Maintenance of electrical control box and components



1.Keeps the photoelectric sensor mirror clean and free of dust. It should be cleaned



with non-woven cloth and cotton cloth, and it is forbidden to wipe with corrosive



liquid!!! (during using, the surface pollution should be cleaned in time)



2.Whether the motor is running normally (check regularly)



3.The control box maintenance is as follows (check once every three months)



a.Check if there is a reliable ground lead.



b.There are different levels of voltage on the control box (dc 24V, ac single-phase



220V, three-phase 220V). The circuit must be clearly separated to prevent short



circuit accidents during maintenance.



c.All the electrical switches on the electrical cabinet, should be flexible and reliable,



no abnormal noise, no loose connection between connector and terminal. If the air



switch is reliable, there should be no leakage and frequent tripping.



d.Check the head state of the electric switch in the control box, the contact



condition, the insulation of the coil surface and the reliability of the mechanical



action.



e.Remove dust from all electrical components with a brush or airbag.







Our Service



Supply the following after-sale service:





♦Free training your technican in our workshop;



♦1 year wear parts are provided with machine;



♦Able to come on site for commissioning, visa cost, double journey airfare, food



   and accommodation



♦Local transporation on site for coming engineer will be charge by buyer;



♦Salary in charge for coming engineer is USD150/day;



♦Providing Guidanc via email and telephone for whole life of the machine.
