Lip Gloss Filling Machine
Created with Pixso.

7KW PLC Control Lip Gloss Machine Filler , Rotary lip gloss tube filler

7KW PLC Control Lip Gloss Machine Filler , Rotary lip gloss tube filler

Brand Name: Gieni
Model Number: JR-02M/L
MOQ: 1SET
Price: Negotiable
Payment Terms: L/C,T/T
Supply Ability: 1set per 90 days
Detail Information
Place of Origin:
China
Certification:
CE
Name:
Semi-Auto Rotary Type Mascara/Lipgloss Filling Machine
Application:
Mascara,lipgloss
Weight:
700KG
Voltage:
220V
Dimension(l*w*h):
1200*800*2080mm
Power:
7KW
Packaging Details:
Film+Polywood Case
Supply Ability:
1set per 90 days
Highlight:

PLC Control lip gloss machine filler

,

mascara lip gloss machine filler

,

Rotary lip gloss tube filler

Product Description

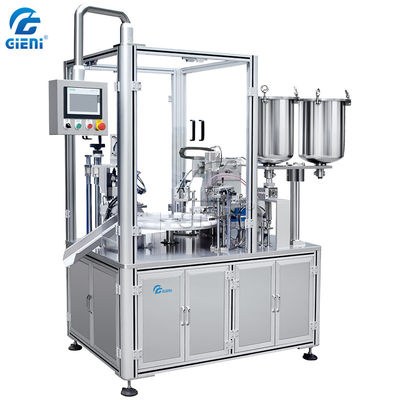

7KW PLC Control Semi-Auto Rotary Type Mascara/Lipgloss Filling Machine







APPLICATION



JRM is a kind of semi-auto filling machine for mascara and lipgloss.The process section is including auto filling,automatic

wipers inserting,brush inserting and capping device.



PROCESS

1.Manually feeding container

2.Auto filling with two nozzles

3.Auto wipers inserting

4.Manual brush cap feeding

5.Auto capping

6.Auto push finished product to conveyor

7.Auto transfer to weigh checker

8.Auto weigh checking





FEATURES



1.With auto wipers input,wipers checking,and capping function.Also it has option on pragram to set functions.

2.Mateial tank is 15 L,with heating ,mixing,and pressuring functions.

3.This machine adopts piston filling system,filling parameter is able to set on touch screen.

4.This machine is made from servo motor driven,materials sucking,lifting and capping system.

5.Wipers are fed through vibration table.

6.With weigh checking device to remove over weight products and not enough product.













Rotary Type Multi - colors Spiral Filling Machine for Lip Gloss





Technical Parameters for Spiral Lip Gloss Filling Machine







 Outer dimension



 1200*800*2080mm





 Power consumption



 7kw





 Voltage



 AC220V,1Ψ,50/60Hz





 Air supply



 0.6-0.8mpa,≥800L/min



 Output



 28-36pcs/min





Cleaning time



 30min



 Weight



 700kgs





 Application



 Mascara,Lipgloss







Packing and Shipping

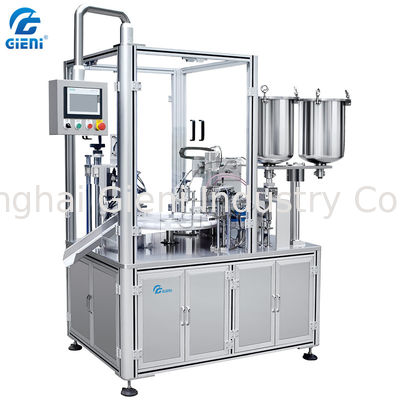

7KW PLC Control Lip Gloss Machine Filler , Rotary lip gloss tube filler 1



Company Information

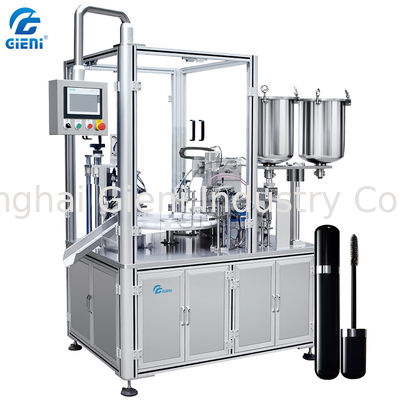

7KW PLC Control Lip Gloss Machine Filler , Rotary lip gloss tube filler 27KW PLC Control Lip Gloss Machine Filler , Rotary lip gloss tube filler 3
