| Brand Name: | Gieni |
| Model Number: | JR-02M/L |
| MOQ: | 1SET |
| Price: | Negotiable |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1set per 90 days |

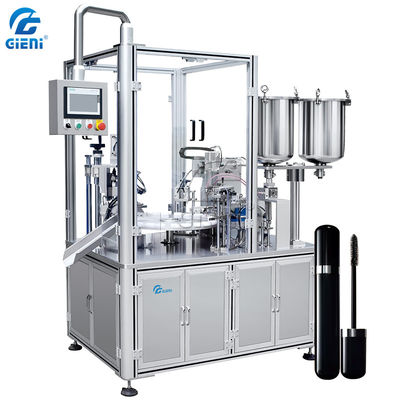

Semi-Auto Rotary Type Mascara/Lipgloss Filling Machine With 15L Material Tank
APPLICATION
JR-02M/L is a kind of semi-auto filling machine for mascara and lipgloss.The process section is including auto filling,automatic
wipers inserting,brush inserting and capping device.
Manually feeding container >Auto filling with two nozzles >Auto wipers inserting Manual brush cap feeding >Auto capping
>Auto push finished product to conveyor >Auto transfer to weigh checker >Auto weigh checking
FEATURES
1. With automatic wiper input, wiper inspection, capping function, and has the function of programming option setting.
2. The volume of the material tank is 15L, which has the functions of heating, mixing and pressurizing.

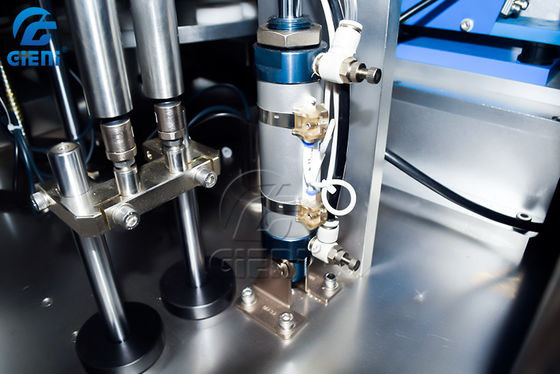

3. The machine adopts a piston filling system, and the filling parameters can be set on the touch screen.

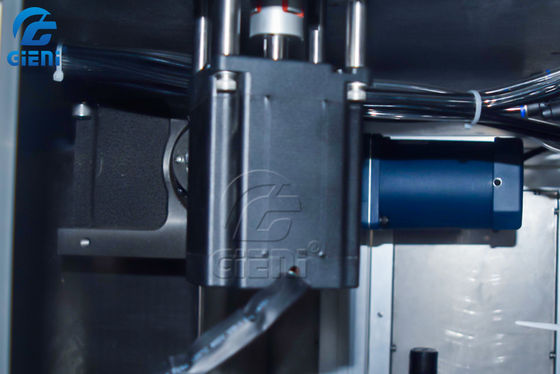

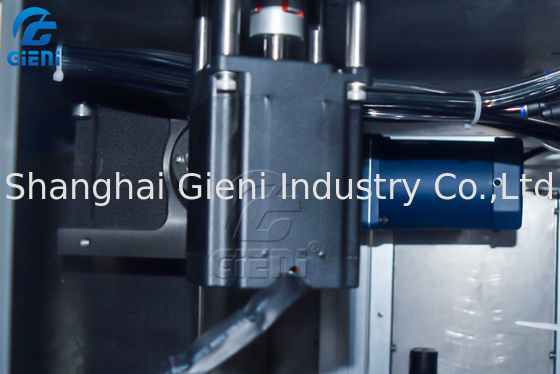

4. The machine is driven by a servo motor, and has a material suction, lifting and capping system.

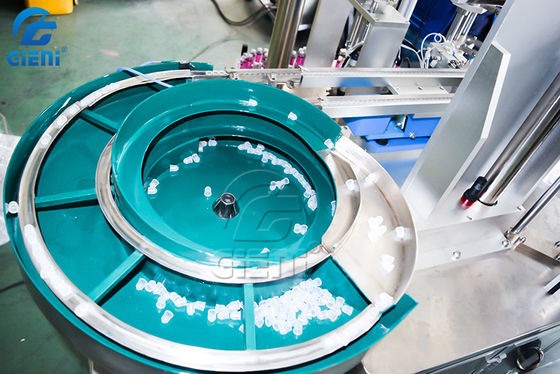

5. The wiper is fed in through the vibrating table.
6. Equipped with check weighing device to eliminate overweight products and insufficient products.
|
Outer dimension |
1200*800*2080mm
|
|
Power consumption |
7kw
|
|
Voltage |
AC220V,1Ψ,50/60Hz
|
|
Air supply |
0.6-0.8mpa,≥800L/min
|
|
Output |
28-36pcs/min
|
|
Cleaning time
|
30min |
|
Weight |
700kgs
|
|
Application |
Mascara,Lipgloss
|
