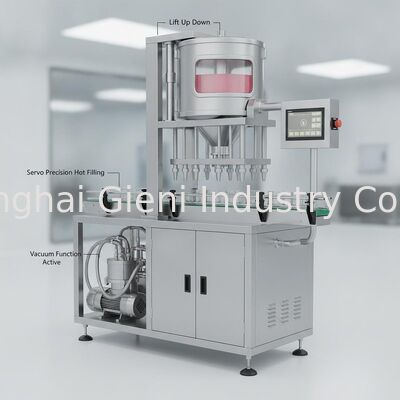

Servo Driven Precision Hot Filling Machine with Tank Lift Up Down and Vacuum Function for Cosmetic Filling

In cosmetic and personal care manufacturing, precision is not a luxury. It is a financial necessity. When working with wax based products such as lip balms, deodorant sticks, body butters, and solid perfumes, even a tiny deviation in fill weight can have a massive impact on profitability, regulatory compliance, and brand reputation. The JSFL single nozzle hot filling machine with tank lift up down functionality was designed from the ground up to deliver exceptional dosing accuracy without compromising speed or flexibility.

Many manufacturers underestimate how much money is lost through minor overfilling. Consider a production run of one hundred thousand units filled at five grams each. If the machine overfills by just 0 point 2 grams per unit, the operation wastes twenty kilograms of finished product. When working with premium ingredients such as shea butter, essential oils, or encapsulated actives, this loss can equate to thousands of dollars per month.

Underfilling presents a different but equally serious problem. Regulatory agencies in many regions enforce strict net weight laws. Underfilled products can trigger fines, recalls, or damage to brand credibility. Achieving consistent, repeatable accuracy is therefore essential for both compliance and profitability.

At the core of the JSFL is a Mitsubishi servo driven piston system. Unlike pneumatic fillers that rely on fluctuating air pressure, servo motors deliver exact control over piston stroke length, acceleration, and deceleration. This enables the machine to maintain plus minus 0 point 1 gram accuracy at a five gram fill weight across extended production runs.

Servo technology also allows programmable dive and retract speeds. Operators can fine tune the motion profile for each formulation, ensuring smooth product flow and minimal disturbance to delicate wax structures. This level of control is impossible to achieve with basic pneumatic cylinders.

Precision filling requires more than accurate dosing. It also demands clean, repeatable delivery. The JSFL achieves this through an automatic tank lift system. During operation, the heated tank assembly lowers until the nozzle penetrates deep into the container. Product is dispensed from the bottom upward, naturally pushing air out and preventing voids. Once the target weight is reached, the tank retracts upward, eliminating drips on container rims or conveyor belts.

This diving fill technique enhances accuracy by ensuring every container receives exactly the same volume of product without variation caused by surface tension, nozzle height, or container positioning.

Temperature consistency directly impacts dosing accuracy. Wax based formulations change viscosity as they cool, which alters flow characteristics and fill weight. The JSFL addresses this with full path heating. The twenty liter dual layer tank, valve block, and nozzle are all temperature controlled. Gentle mixing blades maintain homogeneity without introducing excess heat or shear.

By stabilizing viscosity, the machine ensures that each piston stroke delivers the same amount of product regardless of ambient conditions or batch temperature drift.

Air entrapment is a hidden enemy of precision filling. Even small bubbles alter the effective density of the product, leading to inconsistent weights and visual defects. The JSFL includes an integrated vacuum function that removes air from the tank before filling begins. This produces denser, more uniform fills that maintain consistent weight and appearance across every unit.

Different products require different filling behaviors. The JSFL offers four selectable modes accessible through the Weinview touchscreen interface. Diving filling is ideal for waxes and thick balms. Fixed position filling works well for shallow pans or jars. Continuous filling suits bulk molds or open containers. Stop filling allows programmed pauses, which can be useful for multi layer products.

These programmable modes allow a single machine to serve multiple SKUs without mechanical modifications, improving return on investment and production agility.

Precision is meaningless if the machine cannot be cleaned thoroughly. Residual buildup on tank walls or piston seals introduces variability into subsequent batches. The JSFL is constructed entirely from SUS316L stainless steel in all product contact areas. Mirror polished surfaces minimize adhesion and simplify cleaning. The open frame design provides unobstructed access to all components, enabling rapid turnaround between flavors, colors, or formulas.

Downtime destroys precision by interrupting production flow and forcing restart procedures. To maximize uptime, the JSFL uses internationally recognized components. Mitsubishi servo drives deliver dependable motion control. Schneider Electric components manage power distribution and safety circuits. Standardized parts are readily available through local distributors in most regions, reducing the risk of prolonged downtime due to parts shortages.

In real world operation, the JSFL achieves twenty to thirty pieces per minute at a five gram fill weight. Accuracy remains within plus minus 0 point 1 gram throughout extended runs. This combination of speed and precision makes the machine suitable for pilot scale operations, contract manufacturing, and medium volume branded production.

Accurate dosing reduces raw material waste. Efficient heating systems lower energy consumption compared to continuously running large melters. Rapid cleaning cycles decrease water and solvent usage. Together, these features enable manufacturers to pursue more sustainable production practices without sacrificing output or quality.

Consumers expect every product they purchase to perform identically. Regulators expect every package to meet declared net weight. Investors expect production lines to minimize waste and maximize yield. Achieving these goals requires equipment engineered for accuracy from the ground up.

The JSFL single nozzle hot filling machine with tank lift up down functionality delivers that accuracy through servo driven piston control, full path heating, vacuum deaeration, and a diving fill technique that eliminates air pockets and drips. For manufacturers seeking to protect margins, ensure compliance, and deliver premium quality products, precision is not optional. It is the foundation of success.
