Ultimate Guide to High-Speed Lipgloss Production: The JQH-02 Automatic Filling & Capping Machine
In the dynamic landscape of cosmetic manufacturing, the transition from artisanal batch production to mass-market distribution is a pivotal moment. It requires a leap in technology—moving away from manual labor toward sophisticated automation. For brands specializing in lipgloss, liquid lipstick, and mascara, the challenge is twofold: maintaining precision with high-viscosity fluids and managing speed with uniquely shaped (irregular) bottles.

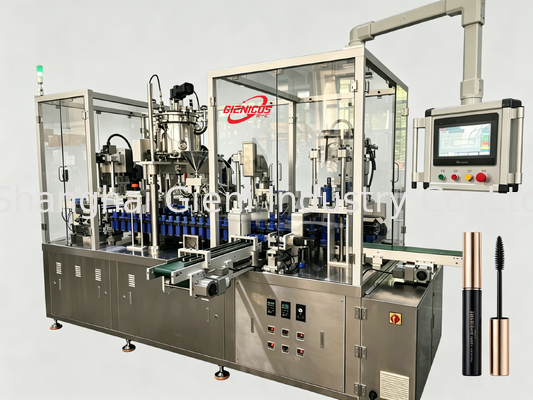

The JQH-02 Automatic Lipgloss Filling and Capping Machine is engineered specifically to bridge this gap. It is not merely a machine; it is a comprehensive packaging ecosystem designed to deliver 80 finished pieces per minute with unwavering accuracy. This guide explores why the JQH-02 is the definitive choice for manufacturers aiming to scale their operations without compromising on quality.
1. The Engineering Philosophy: Speed Meets Stability
Most high-speed machines sacrifice stability for velocity. The JQH-02 employs a Dual-Station Rotary Principle to defy this trade-off. Instead of a single long conveyor line, the machine utilizes a circular indexing system where two stations operate in parallel. While Station A completes the filling cycle, Station B executes the capping sequence. This synchronization minimizes mechanical stress and allows the machine to sustain a blistering 80 PCS/MIN output rate continuously.
Why Dual-Station Matters:
-
Reduced Footprint: Achieve high output in a compact factory layout.
-
Thermal Management: Distributing the workload prevents overheating of servo motors during extended runs.
-
Higher Uptime: If one station requires minor maintenance, the logic allows for continued operation at reduced speed.
2. Precision Filling: Mastering the Art of the Gloss
Lipgloss and liquid lipstick are notoriously difficult to handle due to their viscosity and tendency to string or drip. The JQH-02 utilizes a Servo Piston Filling System—the gold standard for cosmetic applications.
-
Positive Displacement: Unlike peristaltic pumps that can lose prime, servo pistons provide a consistent, measured dose every time.
-
±0.1G Accuracy: At high speeds, consistency is king. This level of precision ensures that every tube contains exactly the amount advertised, protecting your profit margins and complying with labeling regulations.
-
Vacuum Level Control: To prevent messy "drip-backs," the machine employs a vacuum system at the nozzle tip. This ensures a clean break after each dispense, keeping the threads of your irregular bottles pristine and ready for capping.
3. Comprehensive Automation: From Empty Bottle to Finished Goods
The JQH-02 is designed as a "lights-out" solution, requiring minimal human intervention once configured. Here is the detailed workflow that transforms raw components into shelf-ready products:
-
Manual Placement: Operators place empty bottles loosely onto the infeed conveyor.
-
Robotic Pick & Place: A synchronized arm picks bottles from the belt and places them securely into custom-machined pucks (carriers). These pucks ensure that even the most unusually shaped bottles remain stable throughout the high-speed rotation.
-
Servo Filling: As the carousel rotates, the servo pistons descend and dispense the product. The volume (1-20ML) is digitally adjustable via the HMI (Human-Machine Interface).
-
Wiper Loading: The machine automatically picks and inserts inner wipers or plugs. This ensures an airtight seal and prepares the bottle for the brush applicator.
-
Cap Loading: Caps (with brushes pre-inserted) are fed via a vibratory bowl feeder or a cap elevator, oriented correctly, and placed onto the bottles.
-
Servo Capping: Unlike pneumatic cappers that apply variable force, the Servo Capping station applies a precise, programmable torque. This guarantees that every cap is tight enough to prevent leaks but loose enough for the consumer to open easily.
-
Auto Rejection: Integrated sensors monitor the presence of caps and the integrity of the fill. Any defective product is mechanically pushed off the line into a reject bin.
-
Auto Discharging: Perfectly packaged lipgloss tubes are gently pushed out of the pucks onto an outfeed conveyor, ready for cartoning or labeling.
4. Versatility: One Machine, Multiple Product Lines
Investing in the JQH-02 provides a versatile foundation for your business growth. The machine is designed for quick changeovers. By swapping out the puck system and adjusting the filling parameters, you can pivot production to meet seasonal trends:
-
Liquid Lipstick: Handle delicate doe-foot applicators and sleek tubes.
-
Mascara: Manage thicker formulas and wand insertion with ease.
-
Nail Polish: Adapt the filling heads for solvent-based lacquers (explosion-proof options available upon request).
5. Robust Technical Architecture
Built for the rigors of industrial production, the JQH-02 is constructed with durability in mind. Below are the specifications that define its heavy-duty capability:
|
Feature
|
Specification
|
Benefit
|
|
Model
|
JQH-02
|
Proven industry-standard design
|
|
Speed
|
60 - 80 PCS/MIN
|
High-volume output for mass market
|
|
Filling Volume
|
1 - 20 ML
|
Covers mini-sizes to full-size tubes
|
|
Filling Precision
|
±0.1 G
|
Minimizes product giveaway
|
|
Filling Method
|
Servo Piston
|
Handles high-viscosity formulas
|
|
Control System
|
PLC + Touch Screen
|
Intuitive operation, recipe storage
|
|
Power Requirement
|
3P 380V, 13KW, 40A
|
Industrial-grade power for stability
|
|
Pneumatic Demand
|
0.5 - 0.8 MPa
|
Clean, dry air requirement
|
6. Why Choose Our Machinery?
When you invest in the JQH-02, you are partnering with a manufacturer that understands the nuances of cosmetic packaging. We don't just sell machines; we provide solutions. Our commitment includes:
-
Pre-Sales Consultation: We analyze your bottle drawings and formula viscosity to ensure a perfect match.
-
Global Support: Our engineers are available for remote troubleshooting and on-site installation.
-
Spare Parts Availability: We maintain a large inventory of wear parts to ensure your production never stops.
Conclusion: Scale Your Vision
The beauty industry waits for no one. Trends move quickly, and production delays can mean missed opportunities. The JQH-02 Automatic Lipgloss Filling and Capping Machine empowers you to meet demand head-on, delivering professional-grade packaging at unprecedented speeds.
Ready to transform your production line?
Visit cosmetic-fillingmachine.comto request a personalized quote or schedule a virtual factory tour today.
Q: Can the JQH-02 handle glass bottles?
A: Yes, the machine is equipped with soft-gripping mechanisms and precise servo controls to handle both glass and high-end plastic bottles safely.
Q: How long does it take to change over to a different product?
A: With tool-less changeover features and digital recipe storage, switching between similar products takes approximately 30-45 minutes.
Q: Is the machine compliant with GMP standards?
A: Absolutely. The JQH-02 is constructed with 304 stainless steel and features a hygienic design suitable for cosmetic and pharmaceutical environments.
