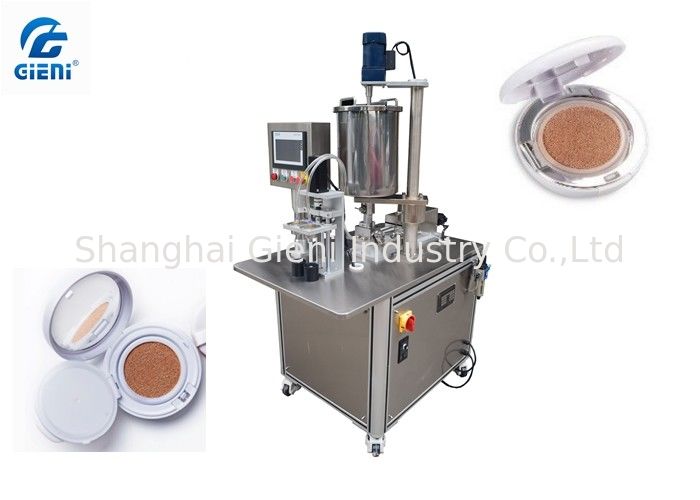

Cushion CC Cream Color Cosmetic Filling Machine Semi - Automatic Type

Semi-automatic Cushion CC Filling Machine , CC Cream Filling Machine



Application for CC Cream Filling Machine



     The machine is specially designed for fluid liquid CC cream filling. It is specially

designed for filling air cushion BB/CC cream products, easy to operate and clean.

      The main part of the machine is made of stainless steel, which is easy to clean

and corrosion resistant. The main electrical uses Siemens, Schneider, Omron ; the

gas path uses Airtac. The mechanism is compact structure, small occupation, high

efficiency, stable and reliable.

    Optional mechanism: automatic bottle feeding system, automatic capping system.

Container discharging are controlled by cylinder mechanical, and the detection

sensor is OMRON optical fiber sensor. Optional configuration: Auto container

collating, Auto container feeding, Auto swab refill feeding, Auto cap feeding


Feature for Air Cushion Filling Machine


       After unpacking the equipment, place in a solid, flat floor. Use a spirit level to

correct the height of each foot so that the machine is in level condition. Then turn

on the power and compressed air.



♦ Tank in 15L is made of SUS304 sanitary materials.

♦ Filling and lifting adopt servo motor driven, convenient operation and precise

   dosing.

♦ 4pcs/fill in one time.

♦ PLC and touch screen adopts Schneider brand.

♦ Powder case size at ф60mm (Can be customized according to customer’s

   requirements)










Technical Parameters for Air Cushion Filling Machine


Outer dimension: 1150*750*1650

Voltage: 1Φ AC220V 50/60HZ

Power: 1KW

Air pressure: 0.5-0.6Mpa

Filling volume: 0-20ml

Capacity: 20-30pcs/min



Piston Filling Type for CC Cream Filling Machine


    Servo piston filling, the quantification is more accurate; the filling head servo lifts

to ensure more uniform filling. (Photoelectric sensor working principle: the servo

moves from the origin to the specified distance by setting the filling amount stroke,

the rotary valve is opened, the lower magnetic sensor signal is on, the servo piston

cylinder starts to push the material to fill; after the filling is completed, the rotary

valve is closed, and the magnetic switch signal is on. And the servo piston cylinder

begins to re-feed and prepare for the next filling.
