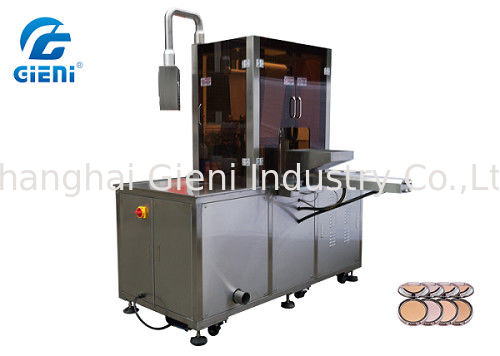

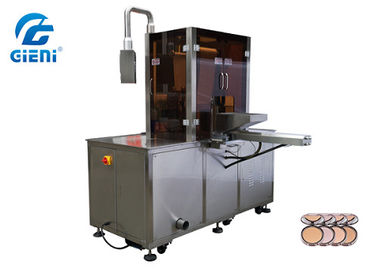

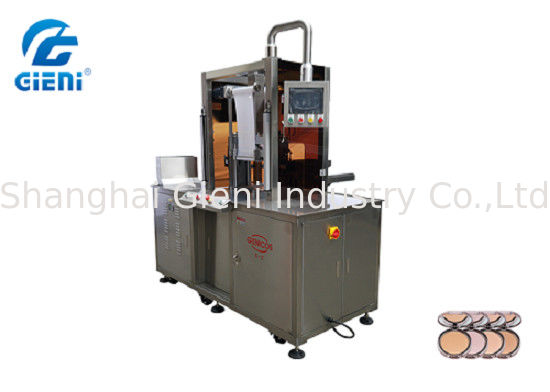

380V/220V New Model Compact Powder Pressing Machine for Compact Powder Full Hydraulic, CE Approved
2020 Updated Model JBC/4 Compact Powder Pressing Machine, Single Color
» Technical Parameter 380V/2
20V New Model Compact Powder Pressing Machine for Compact Powder Full Hydraulic
Model | JBC-4 |
---|---|
Power Supply | AC, 3Phase, 380V(220V), 50/60HZ |
Hydraulic Power | 7.5HP motor |
Max Output pressure | 15Ton |
Working Pressure | 6-7Mpa |
Mold Spec. |
235mm*165mm, effective working ares 180*140mm (Depends on product size to get different number of cavities) |
Productin Rate |
12-18godets/min (If 6cavities/mold) It depends on bulk formula&godet shape with size |
Outer Dimension | 1795*910*2010mm (L*W*H) |
Packing Dimension | 1950*1050*2150mm(L*W*H) |
N.W | 700KGS |
»Target Products 380V/220V New Model Compact Powder Pressing Machine for Compact Powder Full Hydrauli
-Dry powder: two-way Cake, compacts, blusher, eyeshadow, etc;
-Single color compact powder.
» Features 380V/220V New Model Compact Powder Pressing Machine for Compact Powder Full Hydraulic
-Whole mold module is installed in the machine to reduce the wear loss, save the setting time before production;
-Pressing from bottom to top, oil pressure is adjustable;
-Auto powder loading device, less pollution and save production time(Manual Load is optional);
-Three-stage powder loading for fast color change purpose
-Powder volume/quantity is adjustable on HMI, variety powders are suitable with 1 set of mold, easy to operate;
-Auto ribbon device(cloth rolling device);
-SUS hopper for storage the godets;
-With dust collection system, low pollution and powder can be recycled as well;
-Auto mold release device;
-PLC control and HMI adjustment for:
powder loading times,powder press time, press powder times, pressure keeping time, cloth rolling times; air exhaust time,etc.
» Press Mold photo for different godets
