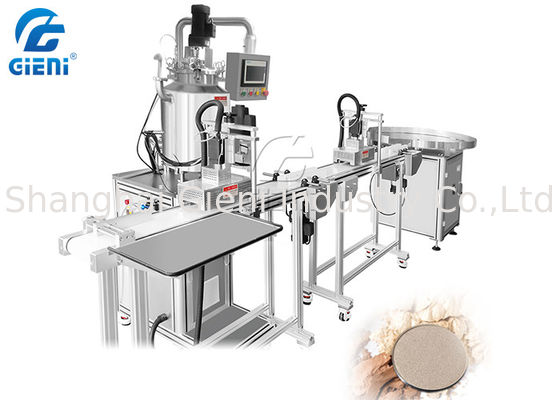

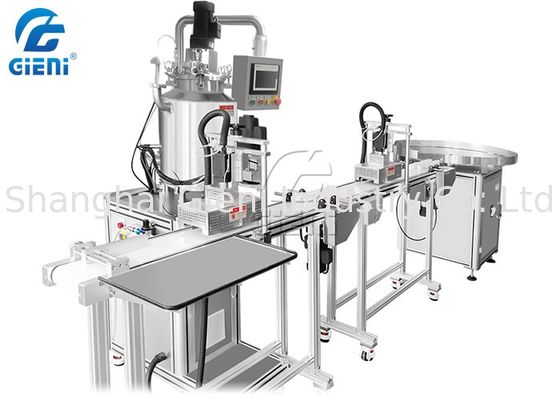

Single Head Gear Pump 50pcs/Min Cosmetic Filling Machine

JSF-L Lifting Up Single Head Gear Pump Filling Machine

Application

It applies to use for most of oil fluids filling, good for lip balm, lipstick in pan, foundation, and other oil / cream products.

Features

1. Strong versatility. A new type of filling equipment that uses gear pump speed and pump rotating time to determine the filling volume. Its structure is simple and easy to operate. The discharge nozzle can be customized as a hose, which can meet the filling capacity requirements of 1ml-1000ml, and is not limited by the filling capacity. It is a reliable and durable filling equipment. It can be equipped with multiple filling heads, including single pump, double pump and four pumps; used for filling multi-color products.

2. The pump head is independently developed and designed. Our gear pump adopts special production and processing technology to solve the packaging and filling accuracy of traditional gear pumps with high and low liquid level differences.

3. The internal gear of the pump head can be driven by an ordinary motor. The pump head and the motor coupling are specially designed to avoid damage to the shaft seal, spills or excessive pump load and burn out the motor; PLC controls the filling time, and the actuator cylinder The valve is closed; the filling time is accurate to 0.01 second, so as to ensure the filling accuracy and the error is less than 2%;

4. Industrial hot air gun imported from Switzerland, reliable quality and long life;

5. Using frequency converter control, the filling speed can be adjusted.

6. This machine adopts the servo motor lifting function to reduce the bubbles generated when the product is filled.

Parameters
