Product Details:
|
| Machine: | Full Automatic Rotary Type Cosmetic Liquid Lip Gloss Cosmetic Filling Machine | Machine Size: | 2350 (L)×2150(W)×1900(H)mm |
|---|---|---|---|
| Machine Voltage: | AC220V,1 P, 50/60HZ | Machine Power: | 7KW |
| Container Size: | Dia 10-125mm, Length(exclude Brush Cap) 40-90mm | Machine Capacity: | 50 - 60pcs/min |
| Air Supply: | 0.6-0.8Mpa, ≥800L/min | Weight: | 900kgs |
| Gieni Service: | Online Support, Video Call Technical Support, Free Repair Parts, Onsite Installation, Training, Maintenance | Applications: | Mascara, Lip Gloss |
| Highlight: | 7KW Lip Gloss Filling Machine,50Pcs/Min Lip Gloss Filling Machine,Rotary Lip Gloss Filling Machine |
||
Production Flow:
Manually place containers to the conveyor -----auto filling (no bottle no filling)-----auto wiper sorting/feeding---wiper detector / press-----auto brush feeding -----auto servo capping----auto discharging
Application for Mascara/Lip Gloss Making Machine

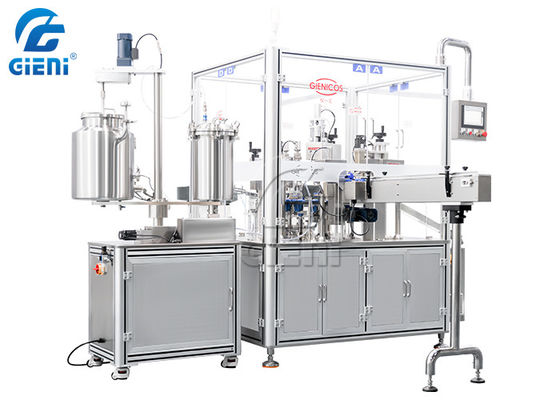

The GIENI® JQR-02 is designed for production of both lip gloss and mascara filling and capping, very smart and flexible rotary type machine, also save your space.
Features of Mascara/Lip Gloss Making Machine
◆ mechanical cam mechanism;
◆ equipped with conveyor, width adjustable, speed adjustable;
◆ equipped with 2 filling tanks, each tank volume is 20L, one is for mascara, another is for lip gloss (two same function also ok, for backup)
| mascara tank | pressure function |
| lip gloss tank | heating/stirring function |
| Features: outer layer is SUS304, inner layer which contact material is SUS316L, which is medical grade | |
◆ one nozzle filling, another nozzle for backup (for fast color change), filling volume adjustable

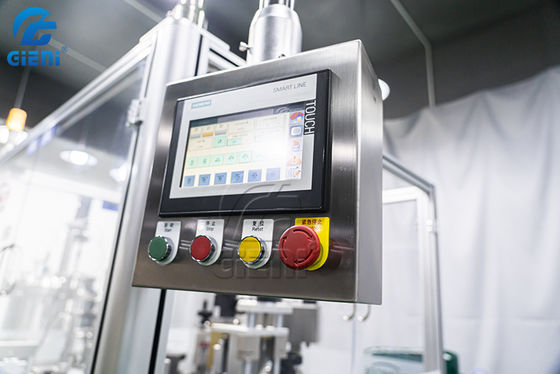

◆ with reset functions on touch screen while changing packagings;
◆ fast disassemble valve for cleaning and changing materials in 90s, no need takes hours;
◆ filling controlled by servo motor, high precision up to ±0.1g;

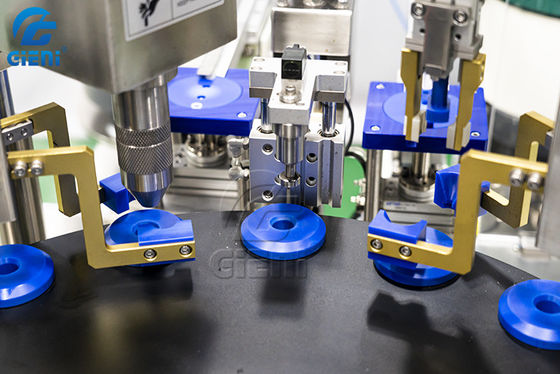

◆ mechanical arms to pick up the containers, caps and wipers to ensure the machine's stable working;

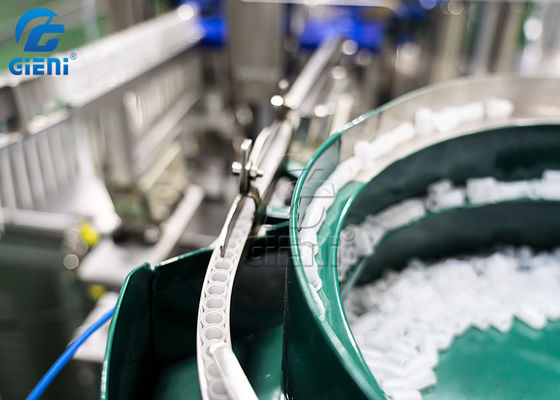

◆ wiper and brush vibration bowl are options
