| Brand Name: | GIENI |
| Model Number: | GNF |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1 |

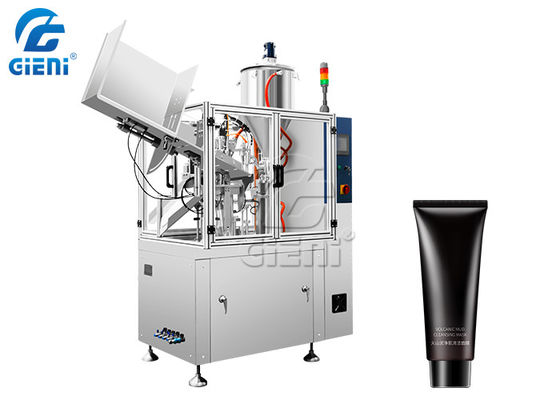

Ecnomic Model Automatic Lipgloss Cosmetic Tube Filling Sealing Machine
Application:
The machine can automatically do the job: tube load,eyemark detect,filling,tube heat,tube sealing,end cut,date coding andfinished product conveyout.
Tube loading adopts pneumatic way, reliable and precise.
Rotary type tube center control and positioning by choosing sensor detect.
Material contacts adopt SUS316L, clean/safe and meet GMP standard.
Safety-door device, stop work when open the door. No tube no filling, overload protection.
Technical Parameter:
Filling Range: 5-250ml
Filling Precision:≤±1%
Production capacity:1800-2400pcs/hour
Tube Dia:∮10-50mm
Tube Length:60-210mm
Power:5KW
Dimension:1900×850×1900mm
Packing Size: 2000*1220*1915mm
Weight:850kg
Process:
Main Configuration:
| Item | Name | Brand |
| 1 | PLC | Delta |
| 2 | Touch Screen | Weinveiw |
| 3 | Converter | Delta |
| 4 | Step Motor | SIhai |
| 5 | Eyemark detect sensor | Panasonic |
| 6 | Air Switch | CHNT |
| 7 | Code | Omron |
| 8 | Pneumatic Elements | SMC |
Eye Mark Detect

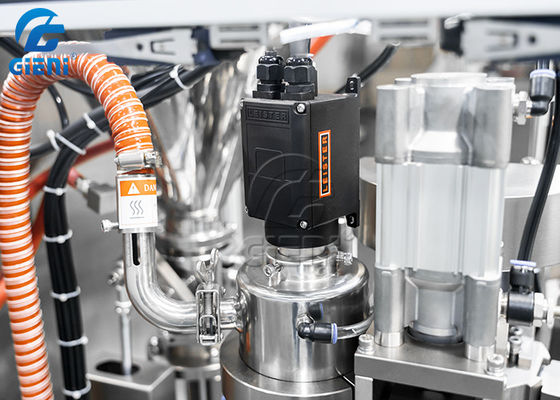

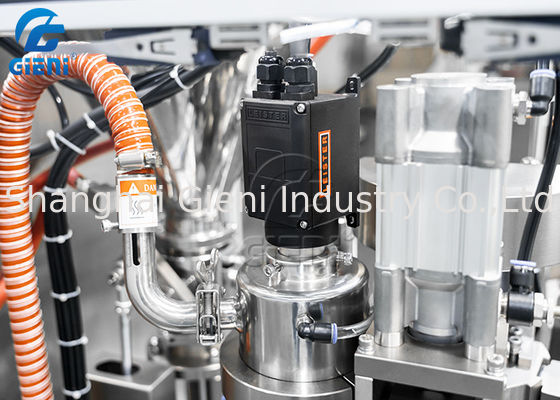

Hot Air Blowing and Sealing Station
Tube Loading Station

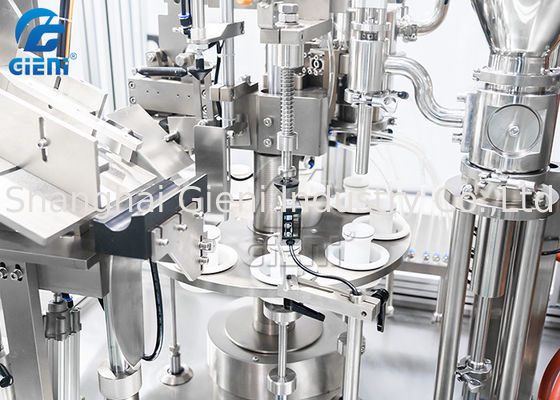

Filling Station, tube lift-up
