| Place of Origin: | China |
| Brand Name: | Gieni |
| Certification: | CE |
| Model Number: | FSM-5 |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Film+Polywood Case |
| Delivery Time: | 3 Months |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1SET PER THREE MONTHS |
| Material: | Stainless Steel | Application: | Silicone Lipstick |
|---|---|---|---|
| Dimension: | 4855*3975*2215mm(L*W*H) | Capacity: | 1200~1500pcs/hour |
| Voltage: | AC380V | Filling Range: | 2~14ml |
| Weight: | 1400KG | ||
| High Light: | 5 Nozzles Lipstick Molding Machine,One Body Lipstick Molding Machine,5 Nozzles Lipstick Molding equipment |
||

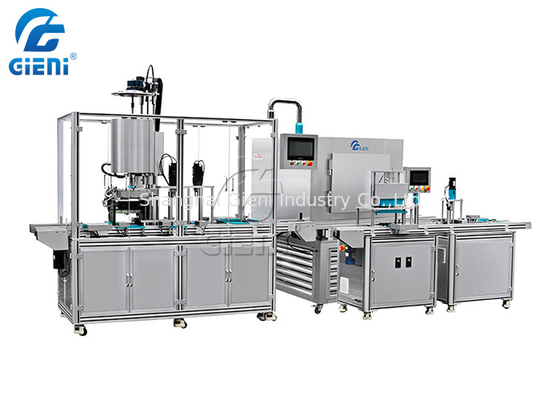

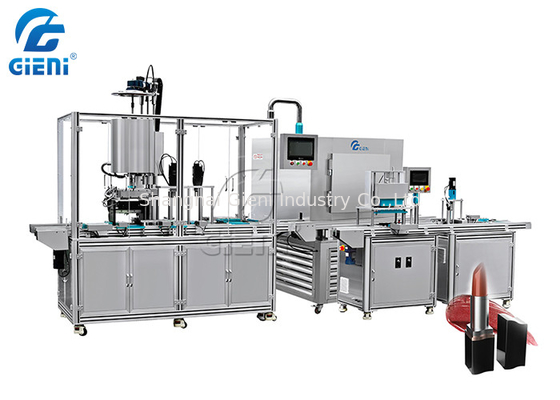

5 Nozzles One-Body Silicone Lipstick Molding Machine Lipstick Filling Machine
This filling line is specially designed for full-body silicone mould lipstick production.
◆ 20L three layer stainless steel tank, inner layer SUS316L.
◆ With heating, mixing and vacuum function;
◆ Mixing speed is adjustable.
◆ Tank is able to be lifted up/down automatically;
◆ Servo Filling and mold lifting, easily adjust the filling volume.
◆ Filling precision:±0.1g.
◆ Filling nozzle with heat preservation and anti-drip functions.
◆ Cooling time is adjustable from the mold moving speed.
◆ Cooling temp. at -15 to -18 degree. (varies from the environment).
◆ Chiller adopts France brand compressor, environmental refrigerant medium R404A.
|
Model
|
FSM-5
|
|
Outer Demension
|
4855*3975*2215 MM
|
|
Voltage
|
AC380V, 3P
|
|
Power
|
17KW
|
|
Output
|
1200-1500 pcs/hour
|
|
Filling Range
|
2-14ml
|
