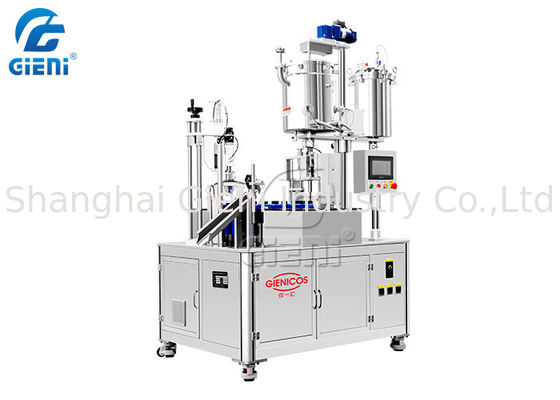

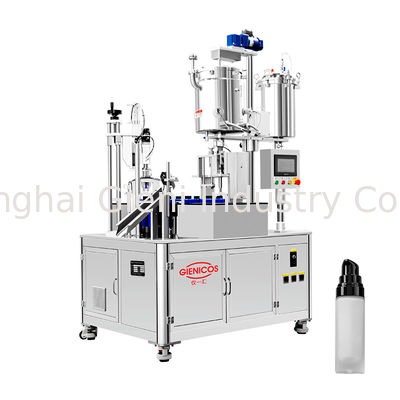

1-100ML Single Nozzle Rotary Type Mascara Filling Machine 30PCS/M With 2 Tanks

1-100ML Single Nozzle Rotary Type Mascara Filling Machine 30PCS/M With 2 Tanks

1-100ML Single Nozzle Rotary Type Mascara  Filling Machine 30PCS/M With 2 Tanks
1-100ML Single Nozzle Rotary Type Mascara  Filling Machine 30PCS/M With 2 Tanks
1-100ML Single Nozzle Rotary Type Mascara  Filling Machine 30PCS/M With 2 Tanks
Product Details:
Place of Origin: CHINA
Brand Name: Gieni/Gienicos
Certification: CE
Model Number: JR-01
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Firm Ply-wood case with film wrapping
Delivery Time: 45 days
Payment Terms: T/T
Supply Ability: 10set per 45 days
Contact Now
Detailed Product Description
Application: Chemical Automatic Grade: Semi-Automatic
Voltage: 220V/380V Driven Type: Electric,electric+pneumatic
After-sales Service Provided: Engineers Available To Service Machinery Overseas Tank QTY: 2pcs, One With Heating, One With Pressure
Filling Volume: 1-10ML, 5-20ML, 20-50ML, 50-100ML Capping: Servo Driven, Torque Adjustable
High Light:

1-100ML Mascara Filling Machine

,

Rotary Mascara Filling Machine

,

30PCS/M chemical filling machine

APPLICATION



Application of 1-100ML Single Nozzle Rotary Type Mascara Filling Machine 30PCS/M With 2 Tanks

30PCS/M Single Nozzle Rotary Type Mascara Filling Machine with 2 Tanks

Applied to produce mascara, lipgloss, liquid lipgloss, lipoil or foundation cream with high filling precision.



1-100ML Single Nozzle Rotary Type Mascara  Filling Machine 30PCS/M With 2 Tanks 0







FEATURES



Feature of 1-100ML Single Nozzle Rotary Type Mascara Filling Machine 30PCS/M With 2 Tanks



1. change different spares to achieve different filling volume: 1-10ML, 2-20ML, 20-50ML, 50-100ML;

2. Since the valve is fast joint design, mascara and lipgloss could be used on one machine by fast changing spare.

3. Special movement control design ensure the electrical cam running;

4. Servo Filling system with nozzle lift up-down, achieve the bottom filling function to avoid bubbles during filling.

5. Program setting for auto cap lift up/down before capping, can set times(1-5 etc)







1-100ML Single Nozzle Rotary Type Mascara  Filling Machine 30PCS/M With 2 Tanks 1































TECHNICAL PARAMETERS



1-100ML Single Nozzle Rotary Type Mascara Filling Machine 30PCS/M With 2 Tanks
Filling Volume 1-10ml, 5-20ml, 20-50ml, 50-100ml by changing spares
Filling capacity 28-35pcs/min depends
Filling precision ±0.1G (take 5ml as example)
Power supply AC220V,1P,50/60HZ, 3.8KW
Air Supply 0.6~0.8Mpa,≥300L/min
Tank Info

2pcs Tanks,

One with dual layer: heating tank with mixing, 20L

One with single layer: pressure type, 20L

Filling Method  Piston type, driven by servo motor























IMAGE DETAILS

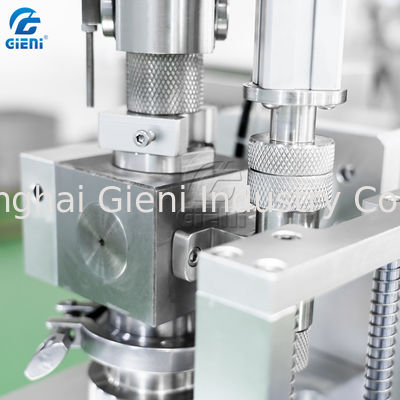

Adopt servo motor to driven the nozzle lifting up and down to complete precision filling.



1-100ML Single Nozzle Rotary Type Mascara  Filling Machine 30PCS/M With 2 Tanks 2

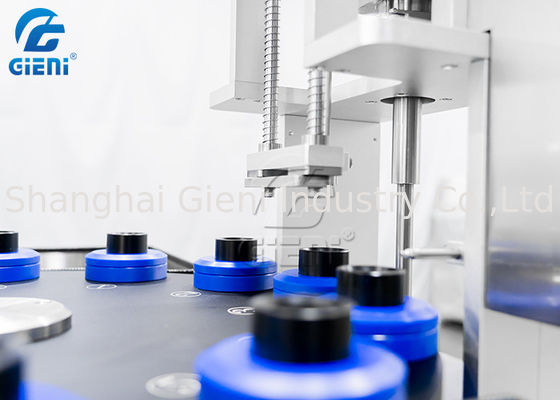

CAPPING HEAD-  Anti-scratch design

1-100ML Single Nozzle Rotary Type Mascara  Filling Machine 30PCS/M With 2 Tanks 3





Two tank,one of them with pressure to fill mascara.

1-100ML Single Nozzle Rotary Type Mascara  Filling Machine 30PCS/M With 2 Tanks 4

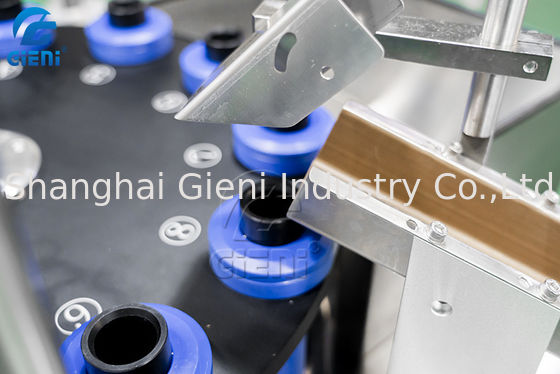

Discharge slide with cloth to protect the container to be scrached.

1-100ML Single Nozzle Rotary Type Mascara  Filling Machine 30PCS/M With 2 Tanks 5
