| Brand Name: | Gieni/Gienicos |
| Model Number: | JR-01 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10set per 45 days |

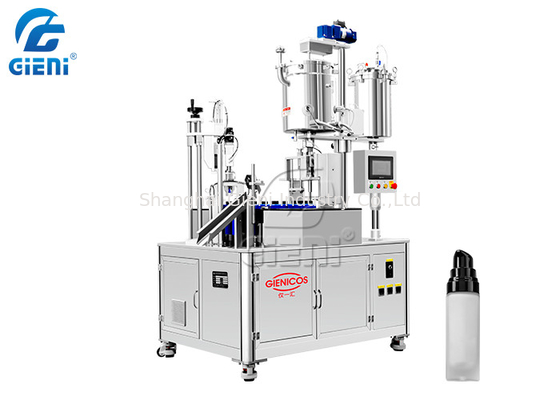

1 Nozzle Rotary Type Cosmetic Filling Machine for foundation cream with capping
Applied to produce mascara, lipgloss, liquid lipgloss, lipoil or foundation cream with high filling precision.
Cosmetic Filling Machine is a mature design meet with FDA cosmetic standard.
is a multifunctional filling machine for both hot and cold filling purpose, which has below characteristics:
1. Fast Cleaning Within 3 min—complete the disassembling & cleaning, save the labor cost during production
2. 1-100ML Filling Volume Changeable Within 5min---
change different spares to achieve different filling volume: 1-10ML, 2-20ML, 20-50ML, 50-100ML;
3. Since the valve is fast joint design, mascara and lipgloss could be used on one machine by fast changing spare.
4. Special movement control design ensure the electrical cam running;
5. Servo Filling system with nozzle lift up-down, achieve the bottom filling function to avoid bubbles during filling.
6. Program setting for auto cap lift up/down before capping, can set times(1-5 etc)
| JR-01 COSMETIC FILLING MACHINE | |
| Filling Volume | 1-10ml, 5-20ml, 20-50ml, 50-100ml by changing spares |
| Filling capacity | 28-35pcs/min depends |
| Filling precision | ±0.1G (take 5ml as example) |
| Power supply | AC220V,1P,50/60HZ, 3.8KW |
| Air Supply | 0.6~0.8Mpa,≥300L/min |
| Tank Info |
2pcs Tanks, One with dual layer: heating tank with mixing, 20L One with single layer: pressure type, 20L |
| Filling Method | Piston type, driven by servo motor |

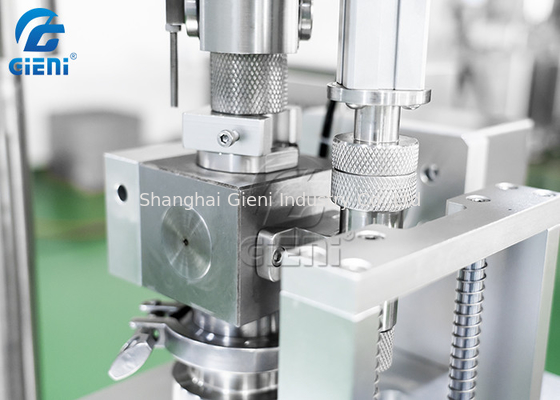

FILLING NOZZLE--Lifting type

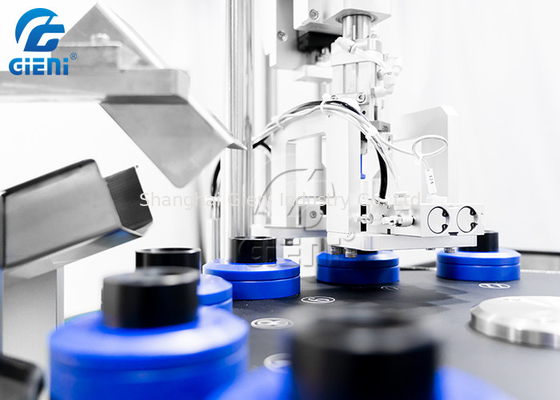

CAPPING HEAD- Anti-scratch design
