Product Details:
|
| Cap Diameter: | 1.5~4.5cm | Sealing Dia: | 5-50mm |
|---|---|---|---|
| Air Source Needed: | Compressed Air 6bar | Filling Speed: | 10-15 Bottles/min Depends On Operation |
| Auto Capacity: | 40~60pcs/min(Auto Fill Capacity) | Air Heater: | LEISTER |
| Filling Valve Head: | Multi-Head | Structure: | Linear |
| Dimension: | 1200x800x1600mm | Transport Package: | Packed In Wooden Cases |
| Machine Weight: | 8000Kg | Machine Dimension: | 670X600X1405mm |
| Filling Heads: | 6 Filling Heads | Machine Material: | SUS304 |
| Application: | Lipstick Filling | Application: | Lipbalm Filling |
| Highlight: | Single Nozzle Lipstick Filling Machine,Lipbalm Lipstick Filling Machine,20L Lipstick Filling Machine |
||

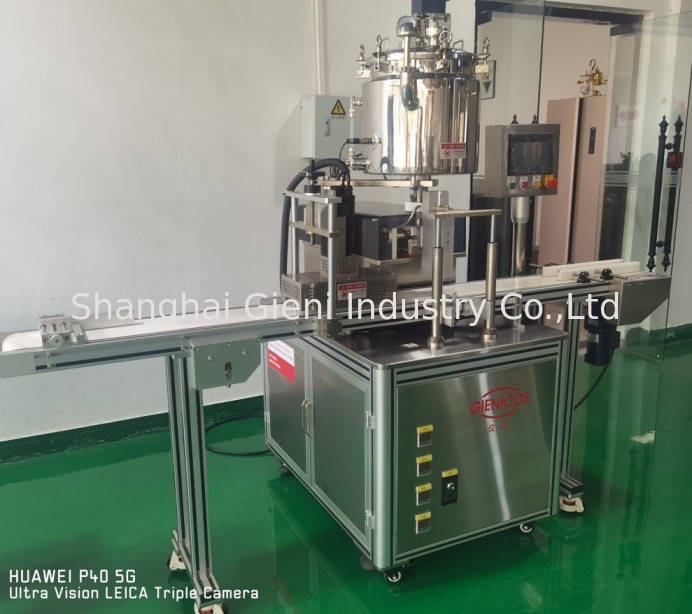

JSFL Single Nozzle Filling Machine
l Brief introduction
This machine is suitable for filling lipgloss product into small tube, cream product into jar or bottle, servo driven piston filling ensures précised filling volume.
l Specification
1.1 One 20L tank with heating/mixing/pressure function, parts contact with bulk is SUS316L
1.2 Machine material: SUS304 and aluminum frame
1.3 Filling system adopts servo drive, Mitsubishi Servo
1.4 Touch screen: Weinview brand
1.5 Main electric elements: Schnedier
1.6 Filling Volume: 2-14ml
(Can equip with bigger size piston pump 20-50ml or 50-100ml)
1.7 Voltage: 220V 1P 50/60HZ
1.8 Filling speed: 20-30pcs/min
1.9 Filling Precision: +-0.1g
1.10 Valve, cylinder and nozzle with warm keeping function.
