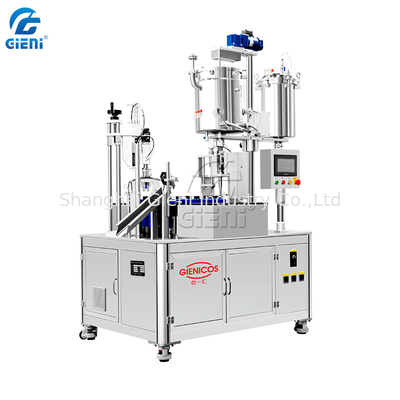

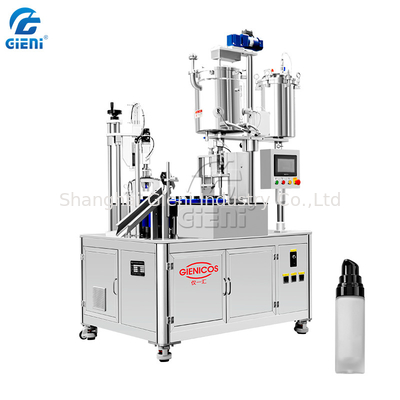

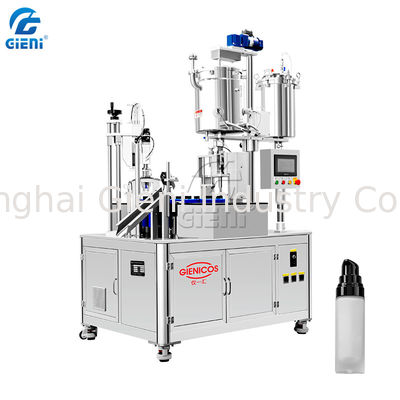

Pneumatic Cosmetic Filling Machine 10ML Semi-Automatic Mascara Capping Machine

Pneumatic Cosmetic Filling Machine 10ML Semi-Automatic Mascara Capping Machine

Pneumatic Cosmetic Filling Machine 10ML Semi-Automatic Mascara Capping Machine
Pneumatic Cosmetic Filling Machine 10ML Semi-Automatic Mascara Capping Machine
Pneumatic Cosmetic Filling Machine 10ML Semi-Automatic Mascara Capping Machine
Product Details:
Place of Origin: CHINA
Brand Name: Gieni/Gienicos
Certification: CE
Model Number: JR-01
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Non-fumigation plywood case / or pallet
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 1 set per 45 days
Contact Now
Detailed Product Description
Keyword: Professional Cosmetic Mascara Filling And Capping Machine Application: Mascara Filling And Capping
Automatic Grade: Semi-Automatic Voltage: 220V/380V
Driven Type: Electric,electric+pneumatic Tank QTY: 2pcs, One With Heating, One With Pressure
Filling Volume: 1-10ML Capping: Servo Driven, Torque Adjustable
High Light:

pneumatic Cosmetic Filling Machine

,

10ML Cosmetic Filling Machine

,

Capping mascara filling machine

 APPLICATION



Application of Professional Cosmetic Mascara Filling and Capping Machine

It could produce mascara with high filling precision.



Pneumatic Cosmetic Filling Machine 10ML Semi-Automatic Mascara Capping Machine 0









FEATURES:



Features of Professional Cosmetic Mascara Filling and Capping Machine is a multifunctional filling machine for both hot and cold filling purpose, which has below characteristics:

1. Fast Cleaning Within 3 min—complete the disassembling & cleaning, save the labor cost during production.

2. 1-100ML Filling Volume Changeable Within 5min.

    change different spares to achieve different filling volume: 1-10ML, 2-20ML, 20-50ML, 50-100ML.

3. Since the valve is fast joint design, mascara and lipgloss could be used on one machine by fast changing spare.

4. Special movement control design ensure the electrical cam running.

5. Servo Filling system with nozzle lift up-down, achieve the bottom filling function to avoid bubbles during filling.

6. Program setting for auto cap lift up/down before capping, can set times(1-5 etc).

Pneumatic Cosmetic Filling Machine 10ML Semi-Automatic Mascara Capping Machine 1







WORKING PROCESS





Manually place container---auto detect(no container no fill)---auto filling---manually place capping or blusher---auto capping

----end peoduct push out.



















TECHNICAL PARAMETERS





Professional Cosmetic Mascara Filling and Capping Machine
Filling Volume 1-10ml, 5-20ml, 20-50ml, 50-100ml by changing spares
Filling capacity 28-35pcs/min depends
Filling precision ±0.1G (take 5ml as example)
Power supply AC220V,1P,50/60HZ, 3.8KW
Air Supply 0.6~0.8Mpa,≥300L/min
Tank Info

2pcs Tanks,

One with dual layer: heating tank with mixing, 20L

One with single layer: pressure type, 20L

Filling Method  Piston type, driven by servo motor













DETAILS IMAGE:

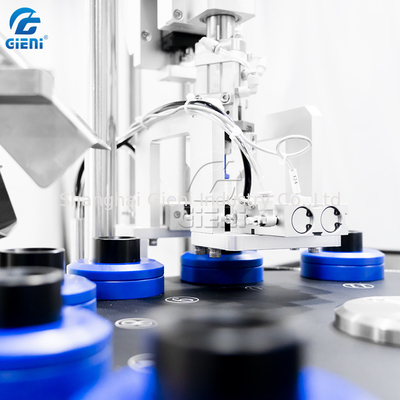

                                                                                                                                                                  Pneumatic Cosmetic Filling Machine 10ML Semi-Automatic Mascara Capping Machine 2FILLING NOZZLE--Lifting type

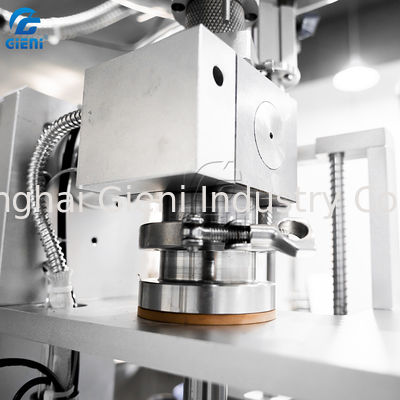

                                                                                                                                                                Pneumatic Cosmetic Filling Machine 10ML Semi-Automatic Mascara Capping Machine 3CAPPING HEAD- Anti-scratch design







                                                                                                                                Pneumatic Cosmetic Filling Machine 10ML Semi-Automatic Mascara Capping Machine 4













PACKING AND SHIPPING



1.Will make sure the machine's package with stretch film wrapping first, and firmly

sea worthy wooden case;

2.We can arrange shipping by air or by sea according to require;

3.We accept to ship by LCL or FCL co-loading.



Pneumatic Cosmetic Filling Machine 10ML Semi-Automatic Mascara Capping Machine 5









COMPANY INFORMATION



Shanghai Gieni Industry Co.,Ltd was founded in 2011. We are a cosmetic

machinery manufacturer which professional in researching and developing,

producing cosmetic machinery. We just focus on daily chemical and color cosmetic

fields, and providing the complete set of packaging solutions for your esteemed company.



In 2011, GIENI created at Shanghai,we Introduce advanced technology fromTalwan,

and start move main business in makeup and cosmetic field to produce first generation

lipstick filling machine and semi auto eye-shadow compacting machine.



In 2012, GIENI recruiting strong R&D team from Taiwan,and start developing the

automatic filling line for lipstick and mascara.



In 2016, GIENI management adjust Marketing target and move main business to United

State American to produce high automation grade machines,and build the advanced line

for lipbalam in 60 pcs per min full automati-cally from container feeding to

labelling,complete turkey project.



In 2018,GIENI's robot application dept is buitt,and working with famous Robot arm

manufactuer and start upgrade container feeding by robot arm,and will attend

ltaly cosmoprof to start European market expansion.


In 2019, GIENI will do more for beauty!



Pneumatic Cosmetic Filling Machine 10ML Semi-Automatic Mascara Capping Machine 6Pneumatic Cosmetic Filling Machine 10ML Semi-Automatic Mascara Capping Machine 7









FAQ



Q:How long can I get the feedback after we sent the inquiry?

A:We will reply you within 2 hours in working day.



Q:Are you a factory or trading company?

A:We area factory,professional cosmetic filling machine manufacturer with about 10 years of experience.



Q:Do you have your own brand name?

A:Yes,”Gieni” is our own brand name.



Q:Which fairs have you attended?

A:Gieni has attended Dubai Beauty Word,Shanghai Cosmoprof,North America Las Vegas Cosmoprof and Thailand Beyond Beauty Events.



Q:Where is your factory located?How can I visit there?

A:Our factory is located in Jiangsu,Province,China.About one hour away from Shanghai Hongqiao Airport.All of our customers from home and abroad are welcome to visit us,and we will arrange to pick up.



Q:How long is the warranty of your equipment?

A:There is 1 year warranty after receipt check upon delivery.And we will comprehensively provide you all kinds of technical support services in after-sale.



Q:What is packing type of this machine?

A:Machine will be packed by standard wooden case.It is suitable for shipment.After you receive machine,you only need to open wooden case to pick up machine.
