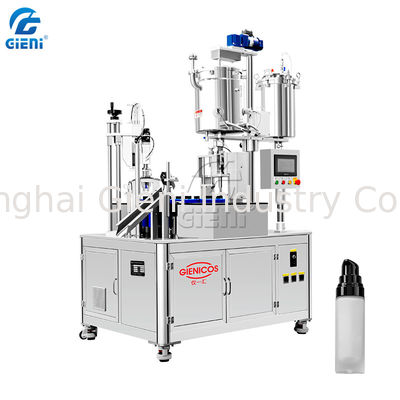

Rotary Type Cosmetic Filling Machine For Mascara Lip Gloss Nail Polish Foundation

APPLICATION



Application of Rotary Type Mascara Lip gloss Nail Polish Foundation Cosmetic Filling Machine

30PCS/M Single Nozzle Rotary Type Mascara Filling Machine with 2 Tanks

Applied to produce mascara, lipgloss, liquid lipgloss, lipoil or foundation cream with high filling precision.









FEATURES



Feature of Rotary Type Mascara Lip gloss Nail Polish Foundation Cosmetic Filling Machine



1. change different spares to achieve different filling volume: 1-10ML, 2-20ML, 20-50ML, 50-100ML;

2. Since the valve is fast joint design, mascara and lipgloss could be used on one machine by fast changing spare.

3. Special movement control design ensure the electrical cam running;

4. Servo Filling system with nozzle lift up-down, achieve the bottom filling function to avoid bubbles during filling.

5. Program setting for auto cap lift up/down before capping, can set times(1-5 etc)





































TECHNICAL PARAMETERS



Rotary Type Mascara Lip gloss Nail Polish Foundation Cosmetic Filling Machine
Filling Volume	1-10ml, 5-20ml, 20-50ml, 50-100ml by changing spares
Filling capacity	28-35pcs/min depends
Filling precision	±0.1G (take 5ml as example)
Power supply	AC220V,1P,50/60HZ, 3.8KW
Air Supply	0.6~0.8Mpa,≥300L/min
Tank Info	2pcs Tanks,  One with dual layer: heating tank with mixing, 20L One with single layer: pressure type, 20L
Filling Method	Piston type, driven by servo motor























IMAGE DETAILS

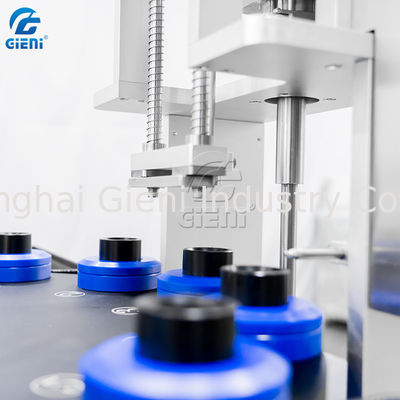

Adopt servo motor to driven the nozzle lifting up and down to complete precision filling.

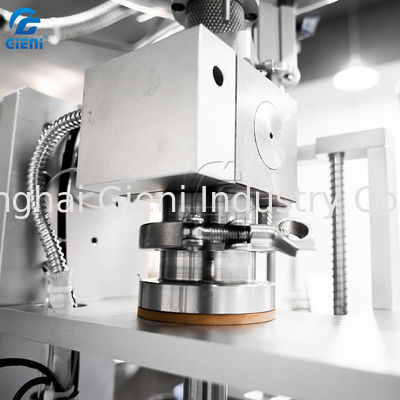

CAPPING HEAD-  Anti-scratch design

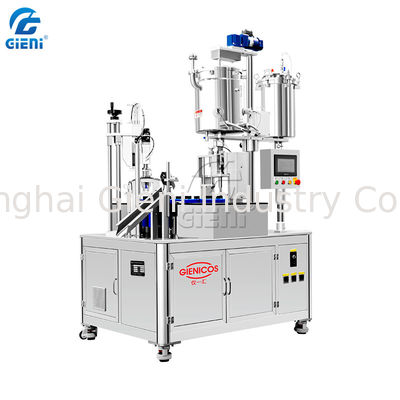

Two tank,one of them with pressure to fill mascara.

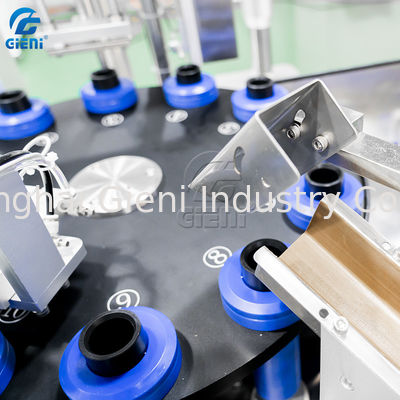

Discharge slide with cloth to protect the container to be scrached.













SHIPPING SHOW











COMPANY  INFORMATION





Shanghai Gieni Industry Co.,Ltd was founded in 2011. We are a cosmetic

machinery manufacturer which professional in researching and developing,

producing cosmetic machinery. We just focus on daily chemical and color cosmetic

fields, and providing the complete set of packaging solutions for your esteemed company.



In 2011, GIENI created at Shanghai,we Introduce advanced technology fromTalwan,

and start move main business in makeup and cosmetic field to produce first generation

lipstick filling machine and semi auto eye-shadow compacting machine.



In 2012, GIENI recruiting strong R&D team from Taiwan,and start developing the

automatic filling line for lipstick and mascara.



In 2016, GIENI management adjust Marketing target and move main business to United

State American to produce high automation grade machines,and build the advanced line

for lipbalam in 60 pcs per min full automati-cally from container feeding to

labelling,complete turkey project.



In 2018,GIENI's robot application dept is buitt,and working with famous Robot arm

manufactuer and start upgrade container feeding by robot arm,and will attend

ltaly cosmoprof to start European market expansion.

In 2019, GIENI will do more for beauty!



















FAQ



Q:How long can I get the feedback after we sent the inquiry?

A:We will reply you within 2 hours in working day.



Q:Are you a factory or trading company?

A:We area factory,professional cosmetic filling machine manufacturer with about 10 years of experience.



Q:Do you have your own brand name?

A:Yes,”Gieni” is our own brand name.



Q:Which fairs have you attended?

A:Gieni has attended Dubai Beauty Word,Shanghai Cosmoprof,North America Las Vegas Cosmoprof and Thailand Beyond Beauty Events.



Q:Where is your factory located?How can I visit there?

A:Our factory is located in Jiangsu,Province,China.About one hour away from Shanghai Hongqiao Airport.All of our customers from home and abroad are welcome to visit us,and we will arrange to pick up.



Q:How long is the warranty of your equipment?

A:There is 1 year warranty after receipt check upon delivery.And we will comprehensively provide you all kinds of technical support services in after-sale.



Q:What is packing type of this machine?

A:Machine will be packed by standard wooden case.It is suitable for shipment.After you receive machine,you only need to open wooden case to pick up machine.
