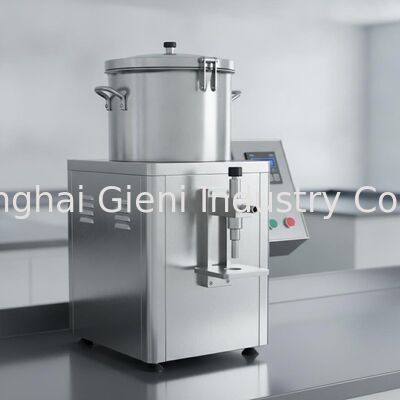

Sun Stick Hot Filling Machine with Tank Lift Up Down and Single Nozzle for Precision Dosing

Sun sticks have rapidly evolved from a niche outdoor product into a mainstream skincare essential. Consumers now expect portable, mess free application combined with high performance UV protection. Formulating an effective sun stick is only half the challenge. Manufacturing it at scale requires precision equipment capable of handling heat sensitive actives, maintaining strict dosing accuracy, and delivering consistent product quality. The JSFL single nozzle hot filling machine with tank lift up down functionality is purpose engineered to meet these exact demands.

Unlike traditional lotions or creams, sun sticks rely on a wax based matrix to suspend UV filters, emollients, and skin conditioning agents. These formulations are thermally sensitive. Many organic UV filters degrade when exposed to excessive heat. Others crystallize or separate if cooling occurs too quickly. The filling process therefore plays a critical role in preserving efficacy and aesthetics.

In addition, sun sticks are often poured into slim, elongated containers with internal twist up mechanisms. These geometries increase the risk of air entrapment, incomplete filling, and surface defects. Conventional filling machines rarely address all these challenges simultaneously.

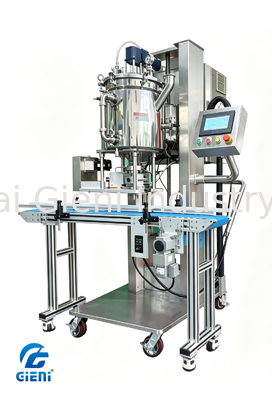

The JSFL utilizes an automatic tank lift system to manage these complexities. Instead of forcing containers upward or relying on static nozzles, the entire heated tank assembly moves vertically. During filling, the tank lowers until the nozzle penetrates deep into the stick container. Product flows upward from the base, gently pushing air out and eliminating voids. Once the target weight is reached, the tank retracts upward, preventing drips on the container rim or conveyor.

This diving fill technique is especially valuable for tall, narrow sun stick molds where air removal is otherwise problematic. It also reduces post fill trimming and improves surface uniformity.

Sun stick formulations often include avobenzone, octocrylene, zinc oxide, or titanium dioxide. These ingredients require careful thermal management. The JSFL addresses this through a fully heated product pathway. The twenty liter dual layer tank, valve block, and nozzle are all temperature controlled. Gentle mixing blades maintain homogeneity without introducing excessive shear or heat.

By keeping the formulation within a narrow temperature window, the machine helps preserve UV filter stability and prevents pigment settling. This consistency translates directly into reliable SPF performance across every batch.

Regulatory compliance in suncare is strict. Underfilled sticks may fail SPF testing, while overfilled sticks erode profit margins. The JSFL uses a Mitsubishi servo driven piston system to maintain plus minus 0 point 1 gram accuracy at a five gram fill weight. Servo motors eliminate the variability caused by fluctuating air pressure in pneumatic systems. Shot size, dive depth, and retract speed are fully programmable, allowing precise control over every aspect of the fill cycle.

For manufacturers producing private label or contract suncare products, this level of accuracy ensures batch to batch consistency and simplifies regulatory documentation.

Air bubbles are a common defect in stick products. They weaken structural integrity and create visible imperfections on the surface. The JSFL incorporates a vacuum function that removes air from the tank prior to filling. This results in denser, smoother sticks with a premium appearance. For clear or lightly tinted sun sticks, bubble free filling is essential to meet consumer expectations.

The suncare market evolves rapidly, with frequent launches of mineral only formulas, tinted sticks, and dermatologist approved blends. The JSFL supports this innovation through configurable filling parameters and modular tooling. Operators can adjust fill volume, temperature setpoints, dive depth, and retract speed via the Weinview touchscreen interface. Recipes can be saved and recalled instantly, reducing changeover time between SKUs.

The machine accommodates various stick diameters and heights, making it suitable for pocket sized applicators as well as larger family size formats.

All product contact surfaces are manufactured from SUS316L stainless steel, offering excellent corrosion resistance and cleanability. Mirror polished finishes minimize residue adhesion and simplify sanitation. The open frame design provides unobstructed access to the tank, valves, and nozzles, enabling thorough cleaning between batches or fragrance changes.

For contract manufacturers handling multiple clients, fast and reliable cleaning processes directly impact profitability by reducing downtime and labor costs.

Equipment reliability is essential in high throughput environments. The JSFL incorporates globally recognized components to ensure long term stability. Mitsubishi servo drives deliver precise motion control. Schneider Electric components manage power distribution and safety circuits. The Weinview touchscreen HMI provides an intuitive interface for operators and supervisors alike.

Standardized components mean spare parts are readily available through local distributors in most regions, minimizing the risk of prolonged downtime due to parts shortages.

In practical operation, the JSFL achieves twenty to thirty sun sticks per minute at a five gram fill weight. Accuracy remains within plus minus 0 point 1 gram throughout extended runs. The combination of speed, precision, and flexibility makes the machine suitable for pilot scale operations, contract manufacturing, and medium volume branded production.

Precision dosing reduces raw material waste. Efficient heating systems lower energy consumption compared to continuously running large melters. Rapid cleaning cycles decrease water and solvent usage. Together, these features enable manufacturers to pursue more sustainable production practices without sacrificing output or quality.

Sun stick consumers expect reliable UV protection, elegant application, and consistent weight. Achieving these outcomes requires equipment designed specifically for hot pour wax products containing heat sensitive actives. The JSFL single nozzle hot filling machine with tank lift up down functionality delivers the control, cleanliness, and accuracy necessary to meet these expectations consistently. By addressing the unique challenges of sun stick filling, this machine helps manufacturers protect margins, ensure regulatory compliance, and deliver premium quality suncare products to market.
