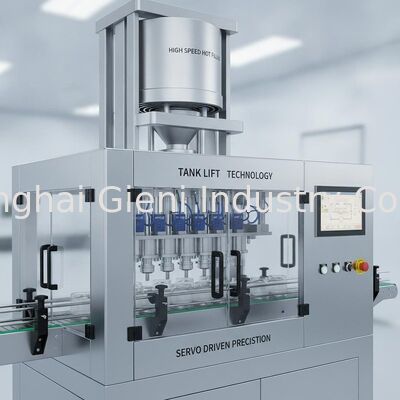

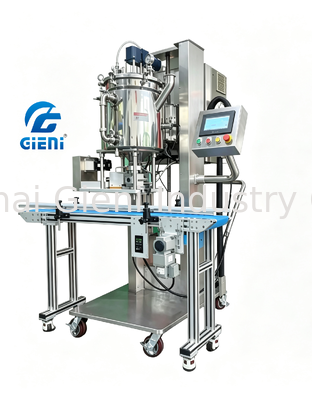

High Speed Hot Filling Machine with Tank Lift Technology and Servo Driven Precision for Cosmetics

In cosmetic manufacturing, speed determines competitiveness. When demand spikes for seasonal products like lip balms in winter or sun sticks in summer, production lines must scale quickly without sacrificing quality. Many hot filling machines sacrifice speed for accuracy or vice versa. The JSFL single nozzle hot filling machine with tank lift up down functionality is engineered to deliver both, maintaining high output while preserving precision and product integrity.

Wax based products behave differently than liquids. They cool rapidly, solidify in nozzles, and require careful handling to avoid air entrapment. Because of these challenges, many manufacturers settle for slow, manual processes. This approach limits output, increases labor costs, and creates bottlenecks during peak seasons.

The JSFL addresses these issues through a combination of servo driven motion, full path heating, and an automatic tank lift system. Together, these technologies enable consistent production rates of twenty to thirty pieces per minute at a five gram fill weight.

Traditional fillers often pause to reposition containers or prevent drips. These interruptions reduce effective throughput. The JSFL eliminates these inefficiencies with a vertical tank lift mechanism. During operation, the heated tank lowers so the nozzle penetrates deep into the container. Product is dispensed from the bottom upward, displacing air and ensuring complete fills. Once the target weight is reached, the tank retracts upward, preventing drips and preparing for the next cycle without delay.

This seamless motion reduces idle time and keeps the production line moving at a steady pace.

Speed without consistency leads to defects and waste. Pneumatic fillers often struggle to maintain uniform cycle times because air pressure fluctuates. The JSFL avoids this problem with a Mitsubishi servo driven piston system. Servo motors deliver predictable acceleration, smooth deceleration, and precise stroke control. Operators can program dive depth, retract speed, and dwell time to optimize cycle efficiency for each formulation.

Because the motion profile is electronically controlled, every cycle behaves identically. This repeatability allows the machine to sustain high speeds without generating excessive scrap or rework.

Temperature consistency is vital for high speed production. If wax cools inside the valve or nozzle, flow slows and cycle times increase. The JSFL maintains heat across the entire product pathway. The twenty liter dual layer tank, valve block, and nozzle are all temperature controlled. Gentle mixing blades keep the formulation homogeneous without introducing excess heat or shear.

By preventing premature solidification, the machine sustains rapid fill rates throughout extended production runs.

Air bubbles are a common cause of rejected products. Removing them manually slows production and increases labor costs. The JSFL incorporates an integrated vacuum function that evacuates air from the tank before filling begins. This simple step produces denser, bubble free products without additional handling.

Fewer defects mean fewer interruptions, supporting sustained high speed operation.

Different products require different filling strategies. The JSFL offers four selectable modes via the Weinview touchscreen interface. Diving filling is ideal for waxes and thick balms. Fixed position filling works well for shallow pans or jars. Continuous filling suits bulk molds or open containers. Stop filling allows programmed pauses for multi layer products.

Operators can switch between modes instantly, reducing downtime when transitioning between SKUs and keeping overall equipment effectiveness high.

Speed matters not only during filling but also between batches. Cleaning and reconfiguration must be fast to avoid losing production hours. The JSFL is constructed from SUS316L stainless steel in all product contact areas. Mirror polished surfaces minimize residue adhesion. The open frame design provides unobstructed access to the tank, valves, and nozzles.

These features reduce cleaning time and enable rapid changeovers, helping manufacturers maintain high weekly output even when handling multiple formulations.

Unexpected breakdowns destroy speed by halting production entirely. To maximize uptime, the JSFL incorporates globally recognized components. Mitsubishi servo drives deliver dependable motion control. Schneider Electric components manage power distribution and safety circuits. Standardized parts are readily available through local distributors in most regions, reducing repair delays.

In practical operation, the JSFL achieves twenty to thirty pieces per minute at a five gram fill weight. Accuracy remains within plus minus 0 point 1 gram throughout extended runs. This combination of speed, precision, and flexibility makes the machine suitable for pilot scale operations, contract manufacturing, and medium volume branded production.

High speed equipment must support business growth rather than hinder it. The JSFL is designed for integration with conveyors, capping machines, labeling systems, and cartoning equipment. As demand increases, manufacturers can expand their lines without replacing the filler itself.

Fast filling is meaningless if it produces defective goods. Consumers expect consistent weight, smooth surfaces, and reliable performance. Regulators demand accurate net contents. The JSFL balances velocity with control, delivering high output without compromising the quality standards required in cosmetic manufacturing.

By combining tank lift technology, servo driven precision, and full path heating, the JSFL single nozzle hot filling machine enables manufacturers to meet tight deadlines, satisfy seasonal demand, and grow their businesses with confidence.
