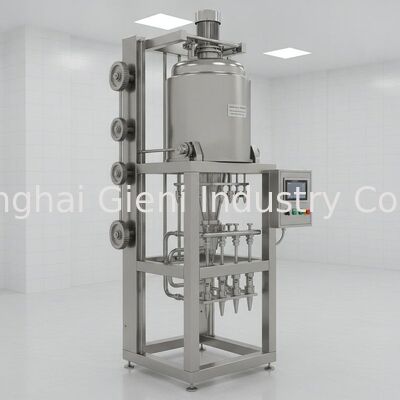

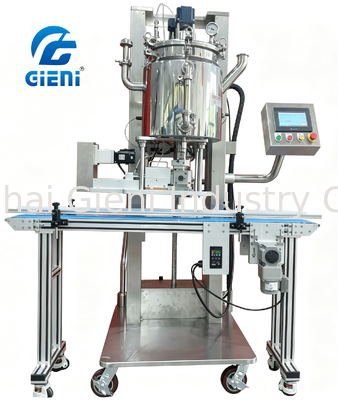

Sanitary Hot Filling Machine with SUS316L Stainless Steel Tank Lift Up Down and Full Path Heating for Cosmetic Filling

In cosmetic and personal care manufacturing, hygiene is not an optional feature. It is a regulatory requirement and a fundamental expectation of consumers. When producing wax based products such as lip balms, deodorant sticks, body butters, and solid perfumes, maintaining a sanitary production environment is essential to prevent contamination, ensure product stability, and protect brand reputation. The JSFL single nozzle hot filling machine with tank lift up down functionality is engineered to meet the highest standards of cleanliness and compliance.

Hot filling introduces unique hygiene challenges. Wax based formulations are poured at elevated temperatures, creating an environment where residual product can accumulate, degrade, and harbor bacteria if not properly cleaned. Narrow nozzles, valve chambers, and tank corners can trap material, leading to cross contamination between batches or microbial growth over time.

In addition, cosmetic regulators in many regions enforce strict guidelines regarding equipment design, cleanability, and material compatibility. Failure to comply can result in failed inspections, product recalls, and reputational damage. A truly sanitary filling machine must address both microbiological risks and regulatory expectations.

The JSFL is constructed entirely from SUS316L stainless steel in all product contact areas. This material offers superior corrosion resistance compared to standard grades, making it ideal for formulations containing organic acids, salts, or essential oils. Its smooth, non porous surface inhibits bacterial adhesion and resists pitting, even after repeated cleaning cycles.

All internal surfaces are mirror polished to minimize crevices where residue could accumulate. Welds are ground flush and passivated to prevent crevice corrosion. This attention to detail ensures that the machine can be sanitized effectively without compromising structural integrity.

Sanitation extends beyond material selection. The design of the filling process itself influences hygiene. The JSFL uses an automatic tank lift system to move the entire heated assembly vertically. During filling, the tank lowers so the nozzle penetrates deep into the container. Product flows upward from the bottom, displacing air and reducing splashing.

Once filling completes, the tank retracts upward, preventing drips on conveyor belts, molds, or machine surfaces. This design minimizes the spread of sticky residues and reduces the frequency of external cleaning, contributing to a cleaner overall production environment.

Temperature control plays a critical role in sanitation. When wax cools inside valves or nozzles, it solidifies and becomes difficult to remove. Over time, these deposits degrade and may flake off into subsequent batches. The JSFL prevents this issue with full path heating. The twenty liter dual layer tank, valve block, and nozzle are all temperature controlled.

By maintaining consistent heat, the machine ensures that product remains fluid throughout the filling cycle. This reduces the formation of hardened residue and simplifies cleaning procedures. Operators can flush the system with warm cleaning solutions without battling solidified wax blockages.

Airborne contaminants pose a constant risk in open production environments. Dust particles, fibers, or microbial spores can enter tanks or containers, compromising product purity. The JSFL includes an integrated vacuum function that removes air from the tank prior to filling. This step reduces the introduction of environmental contaminants and supports cleaner, more stable formulations.

For preservative free or low preservative products, vacuum deaeration provides an additional layer of protection against spoilage organisms.

Effective sanitation requires physical access. Many machines hide critical components behind panels or within enclosed frames, making thorough cleaning difficult. The JSFL adopts an open frame design that provides unobstructed access to the tank, valves, nozzles, and piston assembly.

Operators can visually inspect surfaces, reach all areas with cleaning tools, and verify that no residue remains after washing. This transparency supports both routine sanitation and deeper cleanouts between flavors, fragrances, or active ingredients.

Cleaning in place is a preferred method for many cosmetic manufacturers because it reduces labor and minimizes disassembly. The JSFL is designed to support CIP protocols. Smooth internal pathways, sanitary fittings, and centralized drain points allow operators to circulate cleaning solutions efficiently.

While some disassembly may still be required for periodic deep cleaning, the machine’s geometry minimizes dead legs and hard to reach zones, streamlining the overall sanitation process.

Regulatory compliance is a global concern. The JSFL is built to align with cosmetic GMP guidelines and general hygienic equipment design principles. Its stainless steel construction, cleanable surfaces, and controlled filling environment support compliance with standards commonly enforced in North America, Europe, and Asia.

Documentation such as material certificates, surface finish reports, and cleaning validation guidance can be provided to assist manufacturers during audits or customer inspections.

A standard cleaning cycle for the JSFL typically includes pre rinsing with warm water, circulating an alkaline detergent, rinsing again, applying an acid rinse if required, and finishing with a purified water flush. The entire process can be completed in under an hour, minimizing downtime between production runs.

For contract manufacturers handling multiple clients, this rapid turnaround capability directly impacts profitability and responsiveness.

Consumers may never see the inside of a filling machine, but they experience its results every time they open a product. Off odors, discoloration, or unexpected irritation can often be traced back to poor hygiene during manufacturing. Investing in sanitary equipment is therefore not merely a compliance exercise. It is a commitment to quality and consumer safety.

The JSFL single nozzle hot filling machine with tank lift up down functionality delivers that commitment through SUS316L construction, full path heating, vacuum deaeration, and thoughtful design that prioritizes cleanability. For manufacturers who view hygiene as a competitive advantage, this machine provides the foundation for trustworthy, high quality production.
