Product Details:
|
| Machine Type: | Fully Automatic Lipstick Production Line | Control System: | PLC With Touch Screen HMI |
|---|---|---|---|
| Production Speed: | 40-60 Pcs/min (2400-3600 Pcs/hour) | Filling Stations: | 2 (Dual Filling Axis) |
| Voltage: | 3P 380V / 1P 220V | Power: | 11.5 KW (Filling 7.5KW + Capping 4KW) |
| Air Pressure: | 0.5-0.8 MPa | Body Material: | 304 Stainless Steel |
| Contact Material: | 316L Stainless Steel | Functions: | Tube Loading, Filling, Reverse Melting, Freezing, Capping, Pressing, Separation |
| Language: | Chinese / English | Recipe Storage: | 10 Groups |
| Highlight: | PLC Automatic Lipstick Line,40-60 pcs/min High Output,304 Stainless Steel Construction |
||

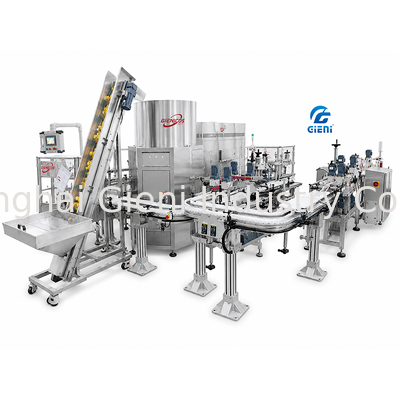

The VS016 is a state-of-the-art fully automatic lipstick production line engineered by Gieni (Shanghai) Intelligent Technology Co., Ltd. Integrating 7 automated processes — tube loading, precision filling, reverse melting, controlled freezing, cap placement, pressing, and finished product separation — this single line delivers end-to-end lipstick manufacturing with zero manual intervention.
| Parameter | Filling Unit | Capping Unit |
|---|---|---|
| Model | VS016-F | VS016-C |
| Voltage | 3P 380V | 1P 220V |
| Current | 15A | 12A |
| Speed | 40-60 pcs/min | 40-60 pcs/min |
| Output | 2400-3600 pcs/hour | 2400-3600 pcs/hour |
| Power | 7.5 KW | 4 KW |
| Air Pressure | 0.5-0.8 MPa | |
Founded in 2011, Gieni (Shanghai) Intelligent Technology Co., Ltd. specializes in R&D, production and sales of cosmetic filling machinery. With products exported to 50+ countries including USA, Mexico, Switzerland, Russia, Turkey, and Indonesia, Gieni delivers complete packaging solutions for the cosmetics and daily chemical industries.
