VS016-C Automatic Lipstick Capping Machine 40-60 pcs/min Dual Cap Feeding PLC Control

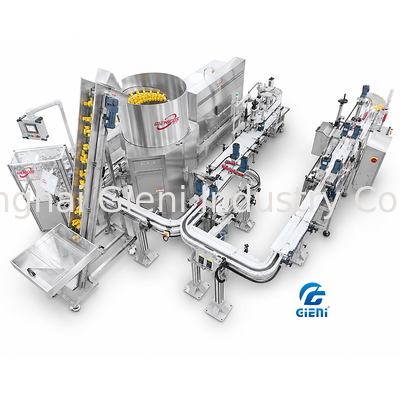

Large Image : VS016-C Automatic Lipstick Capping Machine 40-60 pcs/min Dual Cap Feeding PLC Control

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	Gieni
Certification:	CE, ISO 9001
Model Number:	VS016-C

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	USD 10000-18000 / Set
Packaging Details:	Export-grade wooden crate with vibration-proof packaging
Delivery Time:	25-35 working days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	25 Sets per Month

Contact Now

VS016-C Automatic Lipstick Capping Machine 40-60 pcs/min Dual Cap Feeding PLC Control

Description

Machine Type:	Automatic Lipstick Capping Machine	Control System:	PLC With Touch Screen HMI
Production Speed:	40-60 Pcs/min (2400-3600 Pcs/hour)	Cap Feeding:	Dual Vibrating Bowl Feeders
Voltage:	1P 220V	Power:	4 KW
Current:	12A	Air Pressure:	0.5-0.8 MPa
Body Material:	304 Stainless Steel	Language:	Chinese / English
Operation Mode:	Independent Or RS485 Linked
Highlight:	Dual Cap Feeding System , Automatic Pressing Station , 40-60 pcs/min Capping

VS016-C Automatic Lipstick Capping Machine

The VS016-C is a dedicated automatic lipstick capping machine with dual vibrating bowl cap feeders and an automatic pressing station. Designed to work as a standalone unit or link with the VS016-F filling machine via RS485 communication for fully synchronized production.

Key Features

Dual Cap Feeding Bowls: Two independently controlled vibrating bowl feeders with automatic vibration start/stop based on cap presence detection, ensuring continuous cap supply.
Automatic Pressing Station: Pneumatic cylinder with adjustable pressing force and stroke for secure cap seating without damaging the lipstick bullet.
Intelligent Detection: Cap presence verification with automatic skip when no cap is detected; fixture jam detection with automatic release.
Independent or Linked Mode: Operate standalone for manual loading or communicate with filling machine via RS485 for fully automated synchronized production.
PLC Touch Screen: Real-time production monitoring, alarm display, and parameter adjustment via intuitive HMI interface.

Technical Specifications

Parameter	Specification
Model	VS016-C
Voltage	1P 220V
Current	12A
Speed	40-60 pcs/min
Output	2400-3600 pcs/hour
Power	4 KW
Air Pressure	0.5-0.8 MPa
