VS016-H High-Speed Automatic Lipstick Production Line 60-80 pcs/min Enhanced Servo System

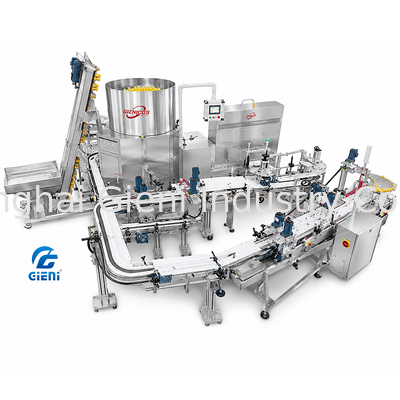

Large Image : VS016-H High-Speed Automatic Lipstick Production Line 60-80 pcs/min Enhanced Servo System

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	Gieni
Certification:	CE, ISO 9001
Model Number:	VS016-H

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	USD 35000-55000 / Set
Packaging Details:	Export-grade reinforced wooden crate with anti-vibration foam, vacuum-sealed electronics
Delivery Time:	35-50 working days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	15 Sets per Month

Contact Now

VS016-H High-Speed Automatic Lipstick Production Line 60-80 pcs/min Enhanced Servo System

Description

Machine Type:	High-Speed Automatic Lipstick Production Line	Control System:	PLC With Color Touch Screen HMI
Production Speed:	60-80 Pcs/min (3600-4800 Pcs/hour)	Filling Stations:	2 (Enhanced Servo Filling Axis)
Voltage:	3P 380V / 1P 220V	Power:	15 KW
Air Pressure:	0.5-0.8 MPa	Body Material:	304 Stainless Steel
Contact Material:	316L Stainless Steel	Functions:	Tube Loading, Filling, Reverse Melting, Freezing, Capping, Pressing, Separation
Language:	Chinese / English	Recipe Storage:	10 Groups
Highlight:	60-80 pcs/min High Speed , Enhanced Servo Drive System , Quick Changeover Recipe Management

VS016-H High-Speed Automatic Lipstick Production Line

The VS016-H is the high-speed variant of our proven VS016 series, engineered for large-scale cosmetic manufacturers demanding maximum throughput. With upgraded servo motors and an enhanced cooling tunnel, this line achieves 60-80 pieces per minute (3,600-4,800 pcs/hour) while maintaining the same precision and reliability of the standard VS016.

Key Features

60-80 pcs/min Output: Upgraded high-torque servo motors and optimized motion profiles deliver 50% higher throughput than standard models.
Enhanced Cooling Tunnel: Extended multi-zone cooling system ensures proper solidification at high speeds without compromising product quality.
Quick-Change Tooling: Modular fixture design enables rapid changeover between different tube diameters and shapes.
10-Group Recipe Management: Store complete production parameters for instant recall, minimizing downtime between product batches.
Advanced Alarm System: Real-time fault detection with visual indicators, automatic stop on critical errors, and detailed troubleshooting guidance.
Energy-Efficient Operation: Servo motors with regenerative braking reduce overall power consumption during high-volume production.

Technical Specifications

Parameter	Specification
Model	VS016-H
Speed	60-80 pcs/min
Output	3600-4800 pcs/hour
Power	15 KW
Voltage	3P 380V / 1P 220V
Air Pressure	0.5-0.8 MPa
Body Material	304 Stainless Steel
Contact Material	316L Stainless Steel
