VS016-D Dual-Station Automatic Lipstick Filling Line Simultaneous Two-Color Twin Formula System

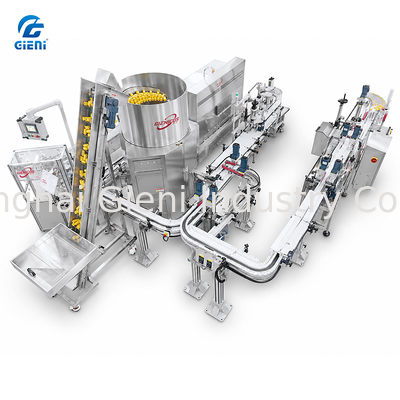

Large Image : VS016-D Dual-Station Automatic Lipstick Filling Line Simultaneous Two-Color Twin Formula System

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	Gieni
Certification:	CE, ISO 9001
Model Number:	VS016-D

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	USD 30000-50000 / Set
Packaging Details:	Export-grade reinforced wooden crate with anti-vibration protection
Delivery Time:	35-50 working days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	15 Sets per Month

Contact Now

VS016-D Dual-Station Automatic Lipstick Filling Line Simultaneous Two-Color Twin Formula System

Description

Machine Type:	Dual-Station Automatic Lipstick Production Line	Control System:	PLC With Dual Independent HMI
Production Speed:	40-60 Pcs/min Per Station	Independent Stations:	2 (Separate Formula Per Station)
Voltage:	3P 380V / 1P 220V	Power:	16 KW
Air Pressure:	0.5-0.8 MPa	Body Material:	304 Stainless Steel
Contact Material:	316L Stainless Steel	Functions:	Tube Loading, Filling, Melting, Freezing, Capping, Pressing, Separation
Language:	Chinese / English	Recipe Storage:	20 Groups (10 Per Station)
Highlight:	Twin Formula Filling System , Simultaneous Two-Color Production , Dual Independent Filling Stations

VS016-D Dual-Station Automatic Lipstick Production Line

The VS016-D features two fully independent production stations operating simultaneously on a single line, enabling manufacturers to produce two different colors, formulas, or SKUs at the same time. Each station has its own filling parameters, temperature controls, and recipe storage, effectively doubling production flexibility without doubling floor space.

Key Features

Simultaneous Dual Production: Run two completely different lipstick formulations (colors, finishes, formulations) on the same line concurrently.
Independent Parameter Control: Each station has its own servo filling axis with independent stroke, speed, suck-back, and temperature settings.
20-Group Recipe Storage: 10 recipe groups per station for a total of 20 storable production parameter sets.
Shared Infrastructure: Tube loading, freezing, capping, and separation systems are shared, reducing cost and footprint compared to two separate lines.
Flexible Operation Modes: Run both stations simultaneously or operate a single station while the other is being cleaned or reconfigured.
Anti-Cross-Contamination: Physically separated filling paths with dedicated material hoppers and independent cleaning circuits.

Technical Specifications

Parameter	Specification
Model	VS016-D
Speed	40-60 pcs/min per station
Power	16 KW
Voltage	3P 380V / 1P 220V
Air Pressure	0.5-0.8 MPa
