HFM-10N60L Ten Nozzle High-Speed Hot Filling Machine 60L Tank 40-60 bottles/min Production Line

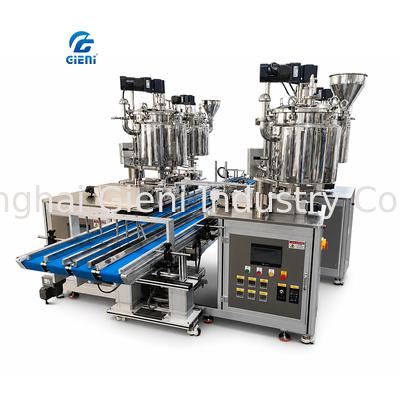

Large Image : HFM-10N60L Ten Nozzle High-Speed Hot Filling Machine 60L Tank 40-60 bottles/min Production Line

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	Gieni
Certification:	CE, ISO 9001, GMP
Model Number:	HFM-10N60L

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	USD 18000-28000 / Set
Packaging Details:	Heavy-duty export crate with reinforced base and desiccant protection
Delivery Time:	35-45 working days
Payment Terms:	T/T, L/C
Supply Ability:	12 Sets per Month

Contact Now

HFM-10N60L Ten Nozzle High-Speed Hot Filling Machine 60L Tank 40-60 bottles/min Production Line

Description

Nozzle Quantity:	10	Tank Capacity:	60L (Double Jacket)
Production Speed:	40-60 Bottles/min	Heating Method:	Electric Jacket With Oil Circulation
Temperature Range:	RT-150°C	Filling Range:	5-1000ml
Body Material:	304 Stainless Steel	Contact Material:	316L Stainless Steel
Power:	12 KW	Voltage:	380V 3-Phase
Control:	PLC With 7-inch Color Touch Screen
Highlight:	Ten Nozzle High Speed , 60L Industrial Heating Tank , 40-60 bottles/min Output

HFM-10N60L Ten Nozzle High-Speed Hot Filling Machine

The HFM-10N60L represents our high-speed hot filling solution with ten nozzles on a 60L double jacket tank. Achieving 40-60 bottles per minute with oil-circulation jacket heating up to 150°C, it meets the demands of large-volume contract manufacturers and brand owners in the cosmetic and pharmaceutical sectors.

Key Features

Ten Nozzle High-Speed Configuration: Maximum throughput with ten simultaneous filling positions on a precision-indexed conveyor.
60L Double Jacket Tank: Oil-circulation jacket heating to 150°C with uniform temperature distribution and continuous stirring.
40-60 Bottles/Min Output: Production-optimized for 24/7 operation with durable pneumatic and servo components rated for continuous duty.
Wide Fill Range: Handles 5ml to 1000ml volumes without nozzle change, enabling multi-SKU production on a single line.
7-inch Color Touch Screen: Full production dashboard with real-time metrics, recipe management, and IoT-ready connectivity.

Technical Specifications

Parameter	Specification
Model	HFM-10N60L
Nozzles	10
Tank	60L Double Jacket
Output	40-60 bottles/min
Temperature	RT-150°C
