Product Details:
|
| Product Name: | Pre Capping Positioning Mascara Filling Machine 2-14ml Quick Change Design | Application: | Mascara, Lip Gloss Filling |
|---|---|---|---|
| Final Tightening: | Servo Controlled | Control System: | Touch Screen HMI + PLC |
| Pre-Capping Function: | Automatic Positioning | Cleaning Convenience: | Removable Filling Components |
| Filling Precision: | ±0.1 G | Production Capacity: | 40-45 Pcs/min |
| Highlight: | SUS304 Stainless Steel Body,Touch Screen HMI Control,Easy Clean CIP Design |
||

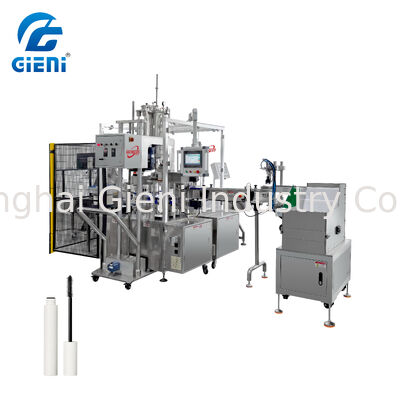

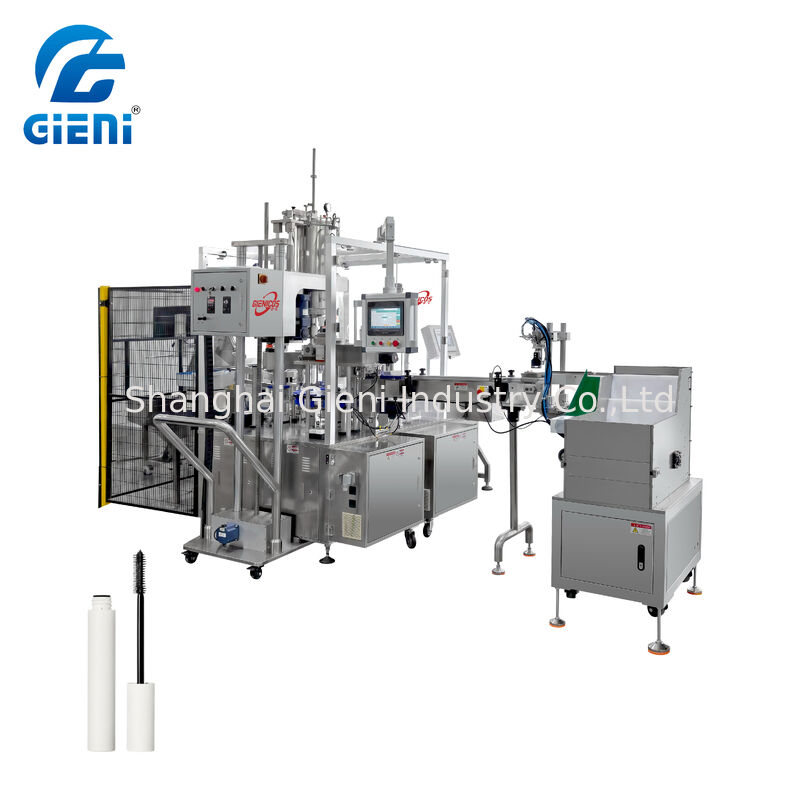

The Pre Capping Positioning Mascara Filling Machine combines automatic liquid cosmetic filling with a controlled cap-positioning process before final tightening. On the JQR-01, a pre-capping operation is performed before the servo-controlled final capping stage, helping position the brush cap correctly and improve consistency during continuous production.
Correct positioning is especially important for mascara and lip gloss packages that use a brush cap assembly. Instead of proceeding directly to final tightening, the JQR-01 introduces a positioning step before capping. The servo-driven capping system then completes the operation using adjustable capping parameters, helping achieve consistent tightening while reducing the risk of cap damage.
The filling section is also designed for easier maintenance and product changeover. Its convenient connection structure allows filling components to be removed and cleaned efficiently. This quick-change approach can be useful for cosmetic manufacturers producing several formulas or running multiple batches on the same equipment.
After filling and capping are completed, finished products are automatically discharged from the rotary system. This allows continuous production and makes it easier to connect the machine with downstream packaging equipment.
| Item | Specification |
|---|---|
| Model | JQR-01 |
| Filling Range | 2–14 ml |
| Filling Precision | ±0.1 g |
| Production Capacity | 40–45 pcs/min |
| Container Diameter | 10–125 mm |
| Container Length | 40–90 mm, excluding cap |
| Capping System | Servo Controlled |
| Pre-Capping | Automatic Positioning |
| Voltage | 380V / 220V |
| Power | 7 kW |
| Air Pressure | 0.6–0.8 MPa |
| Overall Dimension | 2350 × 2150 × 1900 mm |
| Weight | 900 kg |
Q: What is pre-capping positioning?
A: It is a positioning process performed before final tightening to help place the brush cap correctly before the servo-controlled capping operation.
Q: Why is pre-capping useful for mascara packaging?
A: It helps improve the positioning consistency of the brush cap before final tightening.
Q: Is the filling section easy to remove for cleaning?
A: The JQR-01 uses a convenient connection structure that allows filling components to be removed and cleaned efficiently.
Q: Can the machine operate continuously after capping?
A: Yes. Finished products are automatically discharged from the rotary system, allowing continuous production and easier connection with downstream packaging equipment.
Q: Can the machine fill products other than mascara?
A: Yes. The specified applications include lip gloss, liquid lipstick, liquid foundation, eyeliner and other liquid cosmetic products.
For manufacturers handling different cosmetic batches, the Pre Capping Positioning Mascara Filling Machine combines controlled cap positioning, quick-change filling components and automatic product discharge to support an efficient rotary production process.
