| Place of Origin: | China |
| Brand Name: | Gieni |
| Model Number: | FSM-5 |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Film+Polywood Case |
| Delivery Time: | 3 Months |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1SET PER THREE MONTHS |
| Material: | Stainless Steel | Application: | Silicone Lipstick |
|---|---|---|---|
| Dimension: | 4855*3975*2215mm | Capacity: | According To Raw Material And Quantity Of Mold |
| Voltage: | AC380V,1 | Mold: | Silicone Mold |
| Fililng Nozzles: | 5 Nozzles | Power: | 17KW |
| High Light: | cream tube filling machine,cosmetic filling equipment |
||

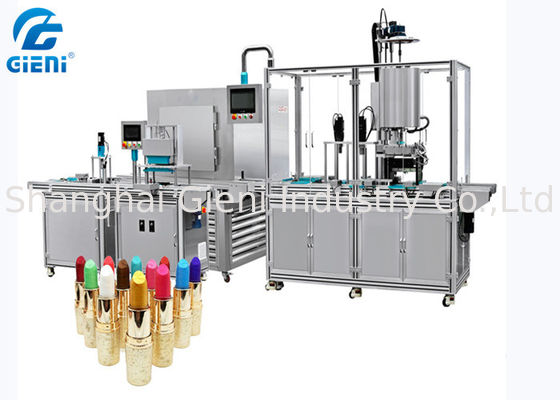

5 Nozzles Fully Silicone Lipstick Molding Machine with Cooling Tunnel
5 Nozzles Fully Silicone Lipstick Molding Machine with Cooling Tunnel
is specially designed for full-body silicone mould lipstick production.
◆ 20L three layer stainless steel tank, inner layer SUS316L.
◆ With heating, mixing and vacuum function;
◆ Mixing speed is adjustable.
◆ Tank is able to be lifted up/down automatically;
◆ Servo Filling and mold lifting, easily adjust the filling volume.
◆ Filling precision:±0.1g.
◆ Filling nozzle with heat preservation and anti-drip functions.
◆ Cooling time is adjustable from the mold moving speed.
◆ Cooling temp. at -15 to -18 degree. (varies from the environment).
◆ Chiller adopts France brand compressor, environmental refrigerant medium R404A.
| Model | FSM-5 |
| Outer Demension | 4855*3975*2215 MM |
| Voltage | AC380V, 3P |
| Power | 17KW |
| Output | 1200-1500 pcs/hour |
| Filling Range | 2-14ml |
