    Product Details:

    Place of Origin: SHANGHAI, CHINA
    Brand Name: GIENI
    Certification: CE
    Model Number: FSM-4

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: plywood case
    Delivery Time: 45
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 1
    Contact Now
    Detailed Product Description
    Machine Name: Full Automatic One Body Silicone Marble Lipstick Production Line Cosmetic Filling Machine Filling Nozzles: 4 Nozzles, Nozzle Distance Adjustable
    Lipstick Production Line: Pre-heating Device,Filling Machine ,Cooling Unit,Demolding Unit,Demolding Unit Feature 1: New Design, Fast Disassemble Type, Quick Change Material And Clean
    Output: 20-960pcs/hour Feature 2: Heating Coiled Tubes, More Safety
    Gieni Service: Online Support, Video Call Technical Support, Free Repair Parts, Onsite Installation, Training, Maintenance Applications: Full Body Silicone Mold Lipstick Production, Can Make Single Or Dual Color Filling (marble Lipstick Available)
    High Light:

    Silicone Marble Lipstick Filling Machine

    ,

    960pcs/H Lipstick Filling Machine

    ,

    800L/Min Lipstick Filling Machine

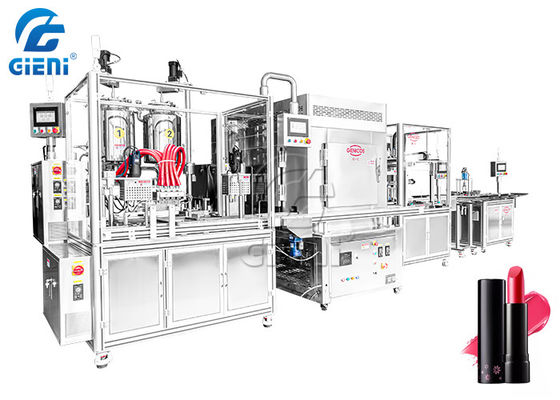

    Full Automatic One Body Silicone Marble Lipstick Production Line Cosmetic Filling Machine (FSM-4) is our latest design with 4 nozzle linear type, it consists of pre-heating station, auto filling, auto re-melting, auto cooling, auto demolding, auto screw down.



    Applications of Full Automatic One Body Silicone Marble Lipstick Production Line Cosmetic Filling Machine

    • used for full body silicone lipstick production
    • suitable for single color filling
    • suitable for dual color filling, such as marble lipstick



    Key Features of Full Automatic One Body Silicone Marble Lipstick Production Line Cosmetic Filling Machine

    1. the distance of filling nozzle is adjustable
    2. fast disassemble valve, can switch to other materials in short time

    Pre-heating device
    1. Adopts Switzerland brand LEISTER Hot Air Gun, blow rate and heating rate are adjustable
    2. With lift up and down function, controlled by cylinder
    3. Height adjustable

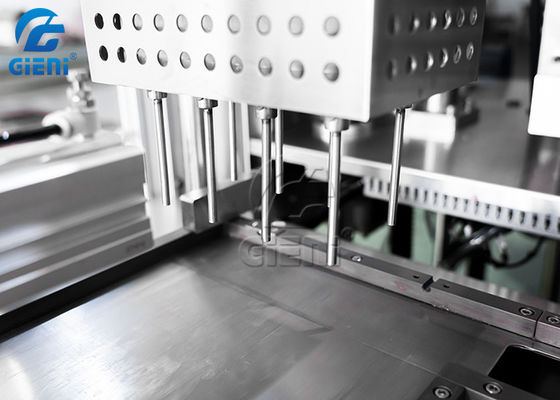

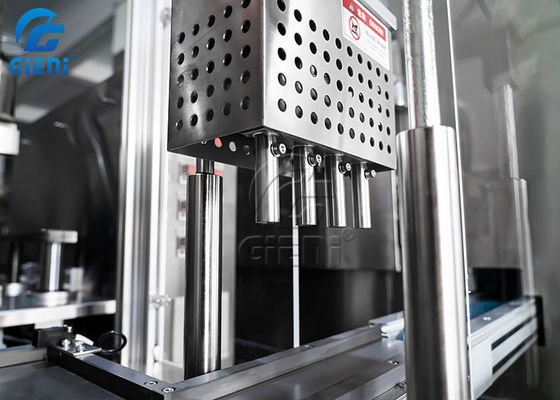

    Filling machine (4 nozzles)
    1. Two 20L 3-layer stainless steel tank, inner layer is SUS316L.
    2. With heating, mixing and vacuum function, mixing speed adjustable.
    3. Tank is able to be lifted up/down automatically.
    4. Fully servo motor control, fill precision & volume adjustable
    5. Filling nozzle with heat preservation and anti-drip functions.
    Cooling Unit
    1. Temperature range max -20℃
    2. Cooling time is adjusable from the mold moving speed.
    3. Adopted France brand compressor, environmental refrigenrant medium RAR04A, quality guarantee.
    Demolding Unit
    1. Vacuum type
    2. Grasper the container 4 pcs at a time
    3. Rotary cylinder control the grasper's rotating
    4. Two-stage vacuum system to release lipstick out of silicone rubber.
    5. Lipstick Container Holder automatically to conveyor
    Demolding Unit
    1. Servo type Screw Down



    Model FSM-4
    Outer Dimension 7360x2250x2385mm(LxWxH)
    Voltage AC380V,3P,50/60HZ
    Power 32KW
    Air consumption 0.6~0.8Mpa, ≥800L/min
    Output 720-960pcs/hour
    Filling range 2~14ML
    Weight 1400kg
    Operator 2~3 persons
