Rotary Type Mascara Cosmetic Filling Machine PLC Control 60pcs/Min

Rotary Type Mascara Cosmetic Filling Machine PLC Control 60pcs/Min

    • Rotary Type Mascara Cosmetic Filling Machine PLC Control 60pcs/Min
    • Rotary Type Mascara Cosmetic Filling Machine PLC Control 60pcs/Min
    • Rotary Type Mascara Cosmetic Filling Machine PLC Control 60pcs/Min
    • Rotary Type Mascara Cosmetic Filling Machine PLC Control 60pcs/Min
    • Rotary Type Mascara Cosmetic Filling Machine PLC Control 60pcs/Min
  • Rotary Type Mascara Cosmetic Filling Machine PLC Control 60pcs/Min

    Product Details:

    Place of Origin: SHANGHAI, CHINA
    Brand Name: GIENI
    Certification: CE
    Model Number: JQR-02

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: plywood case
    Delivery Time: 45
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 1
    Contact Now
    Detailed Product Description
    Machine Name: Automatic Rotary Type PLC Control Mascara Cosmetic Filling Machine Machine Dimension: 2350 (L)×2150(W)×1900(H)mm
    Voltage: AC220V,1 P, 50/60HZ Power: 7KW
    Bottle Size: Dia 10-125mm, Length(exclude Brush Cap) 40-90mm Capacity: 50 - 60pcs/min
    Air Supply: 0.6-0.8Mpa, ≥800L/min Net Weight: 900kgs
    Our Service: Online Support, Video Call Technical Support, Free Repair Parts, Onsite Installation, Training, Maintenance Application: Mascara And Lip Gloss
    High Light:

    PLC Mascara Cosmetic Filling Machine

    ,

    Rotary Mascara Cosmetic Filling Machine

    ,

    60pcs/Min Cosmetic Filling Machine

    Automatic Rotary Type PLC Control Mascara Cosmetic Filling Machine



    Production Flow:

    Manually place containers to the conveyor -----auto filling (container detection)-----auto wiper sorting by vibrating bowl/feeding---wiper detector then press-----auto brush feeding -----auto servo capping----auto discharging



    Application for Mascara/Lip Gloss Making Machine

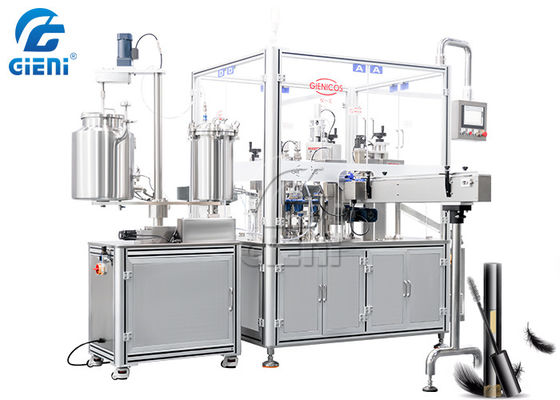

    The GIENI® JQR-02 is designed for production of both lip gloss and mascara filling and capping, very smart and flexible rotary type machine, also less space occupied, save your space and cost



    Features of Mascara/Lip Gloss Making Machine

    ◆ mechanical cam mechanism;

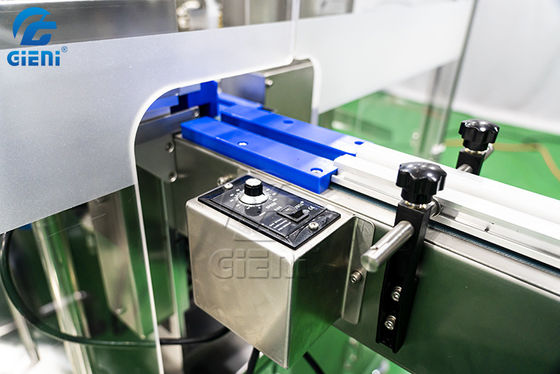

    ◆ equipped with conveyor, width adjustable, speed adjustable;

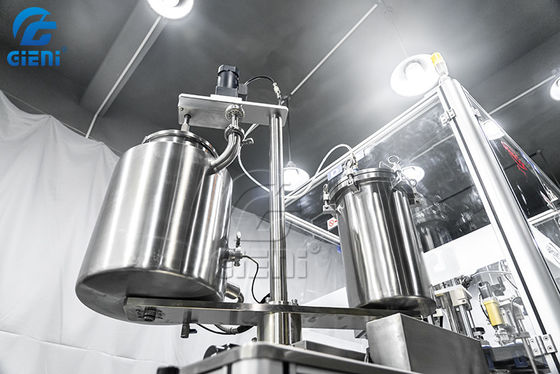

    ◆ equipped with 2 filling tanks, each tank volume 20L, one is for mascara, another is for lip gloss (two same function also ok, for backup)



    mascara tank pressure function
    lip gloss tank heating/stirring function
    Features: outer layer is SUS304, inner layer which contact material is SUS316L, which is medical grade

    ◆ one nozzle filling, another nozzle for backup (for fast color change), filling volume adjustable

    ◆ with reset functions on touch screen while changing packagings;

    ◆ fast disassemble valve for cleaning and changing materials in 90s, no need takes hours;

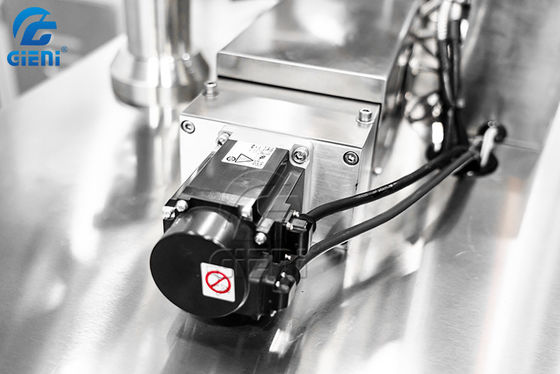

    ◆ filling controlled by servo motor, high precision up to ±0.1g;

    ◆ mechanical arms to pick up the containers, caps and wipers to ensure the machine's stable working;

    ◆ wiper and brush vibration bowl are options
